EG24A002S Gigabit Ethernet Transformer 1000 Base - T Isolation Magnetic LP5004NL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: EG24A002S

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

100/1000base-t filter

,

1000base-t magnetic module

Specifications:
EG24A002S
Measure:
L18.15XB16.00XH6.25(mm)
Mounting:
SMD
Ethernet:
1x10/100/1000Base-Tx
Samples:
Free
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Specifications:
EG24A002S
Measure:
L18.15XB16.00XH6.25(mm)
Mounting:
SMD
Ethernet:
1x10/100/1000Base-Tx
Samples:
Free
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet

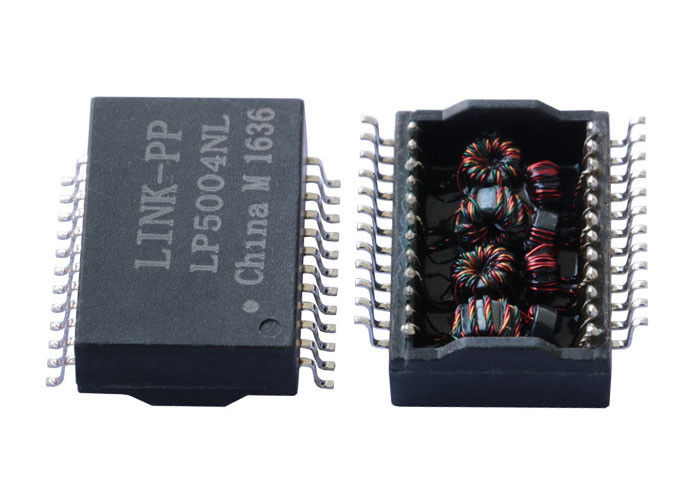

EG24A002S Gigabit Ethernet Transformer 1000 Base - T Isolation Magnetic LP5004NL
EG24A002S Gigabit Ethernet Transformer 1000Base-T Isolation Magnetic LP5004NL
  • Single Port Gigabit Ethernet Transformer EG24A002S
  • Telecom Transformer 24 Pin
  • Good Quality Discrete Magnetic Transformer
  • LAN Magnetic Transformer Suppliers
Single Port, 1000 BASE-T Lan Transformer Modules, SMD,Rohs
Part Number EG24A002S
Speed 1000BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature 0 TO 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 8
Package Height (Inches) 0.260
Package Height (mm) 6.60
Package Length (Inches) 0.697
Package Length (mm) 17.70
Package Width (Inches) 0.65
Package Width (mm) 16.51
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
LINK-PP Part Number LP5004NL

LP5004NL Cross EG24A002S



Applications:


Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
