HR678700E 10/100base-Tx Magnetic Transformer with SMT Mounting LP1188NL

China HR678700E 10/100base-Tx Magnetic Transformer with SMT Mounting LP1188NL supplier

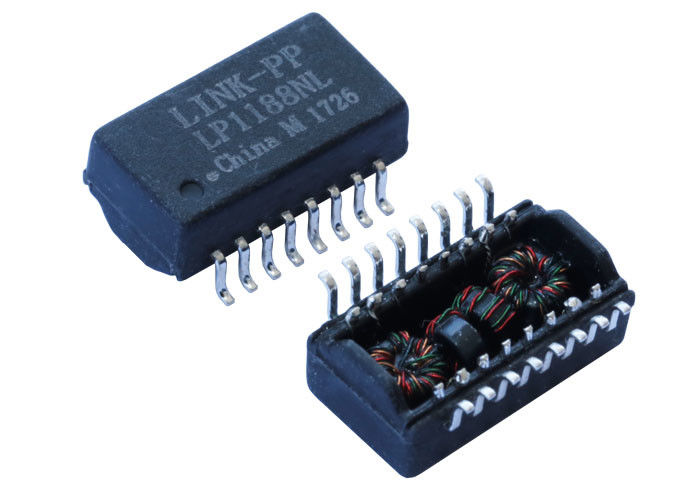

Large Image :  HR678700E 10/100base-Tx Magnetic Transformer with SMT Mounting LP1188NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: HR678700E

Payment & Shipping Terms:

Minimum Order Quantity: 1000/2000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: HR678700E Mounting: SMT
Ethernet: 1x10/100Base-Tx Dielectric: 1500Vrms
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet PIN Number: 16

HR678700E 10/100base-Tx Magnetic Transformer with SMT Mounting LP1188NL



  • l IEEE 802.3 Ethernet Compatible,10/100 Base-TX
  • Surface Mountable(Miniature size)
  • 10/100 Base-T Transformer Modules
  • operating temperature:-40°C - +85°C
  • Hipot test: 1500Vrms 1min.
  • Auto MDIX capable
  • LP1188NL Compatible of HR678700E Equivalent Specifications



Single Port, 10/100 BASE-T Ethernet Transformer Modules, SMD,Rohs
Part Number HR678700E
Speed 10/100BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature - 40 TO + 85
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 4
Package Height (Inches) 0.244
Package Height (mm) 6.20
Package Length (Inches) 0.5
Package Length (mm) 12.7
Package Width (Inches) 0.366
Package Width (mm) 9.30
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
LINK-PP Part Number LP1188NL

HR678700E 10/100base-Tx Magnetic Transformer with SMT Mounting LP1188NL HR678700E 10/100base-Tx Magnetic Transformer with SMT Mounting LP1188NL HR678700E 10/100base-Tx Magnetic Transformer with SMT Mounting LP1188NL



Applications:


Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years



Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Delivery Time:2-3 Weeks After Orders

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT



LINK-PP Corporate Policy

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services
