TG1G-E012NZRL Gigabit Ethernet PoE Transformer Single Port 24Pins LP6062ANL

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

TG1G-E012NZRL Gigabit Ethernet PoE Transformer Single Port 24Pins LP6062ANL

China TG1G-E012NZRL Gigabit Ethernet PoE Transformer Single Port 24Pins LP6062ANL supplier

Large Image :  TG1G-E012NZRL Gigabit Ethernet PoE Transformer Single Port 24Pins LP6062ANL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: TG1G-E012NZRL

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000 pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3-4 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Item No: TG1G-E012NZRL Category: Gigabit Rj45 Transformer
Turns Ratio: 1CT : 1CT Mounting: Surface Mount
Size / Dimension: 17.7mm L X 15.8mm W X 6.6mm H Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

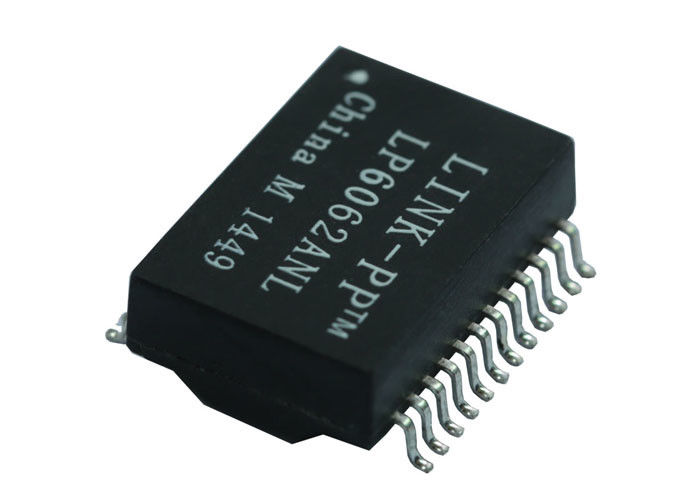

TG1G-E012NZRL SMD Transformer Single Port 24Pins Gigabit Ethernet LP6062ANL
  • Gigabit Ethernet Discrete Transformer
  • IEEE802.3ab/af Compliant
  • UL/EN60950 Recognized
  • 100% Electrical Testing
  • 1500Vrms Hi-Pot
  • Patented Open Frame Construction
  • Halo TG1G-E012NZRL PoE Transformer
  • LINK-PP LP6062ANL Cross
Number of ports Applications Turns Ratio Power Over Ethernet
TG1G-E012NZRL Lan Ethernet(PoE) 1:1 IEEE 802.3/IEEE 802.3af



Packaging Cores Per Port Mounting Type Temperature
Reel , Carton 12 SMT/SMD - 40 TO + 85



Pins Number Shielding Isolation Voltage LED Color
24 Pins -- 1500 Vrms ---


Electrical Specification @25℃

1.Insertion Loss(dB Max): 0.3-1MHz: -1.1 1-65MHz: -0.8
65-100MHz: -1.0 100-125MHz: -1.2
2.Return Loss(dB Min @100 OHM): 0.5-40MHz: -18
40-100MHz: -12-20LOG(f/80MHz)
3.Crosstalk(dB Min): 0.3-100MHz: -33-20LOG(f/100MHz)
4.CM TO CM REJ: 0.3-100MHz: -30dB Min
5.CM TO DM REJ: 0.3-100MHz: -35dB Min
6.Turns Ratio: PRI:SEC= 1CT:1CT ±2%
7.Inductance(100KHz/0.1V@11mA): 350uH Min
8.Balanced DC Line Current: 350mA Max @ 57VDC Continuous
9.Hipot: 1500Vrms/0.5mA
10.Operating Temperature: -40℃~+85℃.



NOTES:


1.Gigabit Transformer Modules With Power Over Ethernet Option
2.Meets IEEE 802.3af speciffcation
3.For RoHS part add suffix NL
4.RoHS"NL" peak solder rating 260℃%%P5℃.



Applications:


Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
