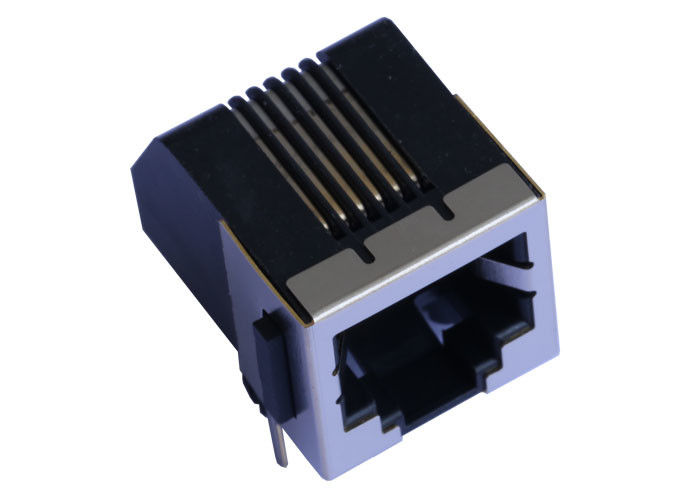

JM56311-K001-4F Unshielded Single Port RJ45 Connector Without LED LPJEF710DNL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: JM56311-K001-4F

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price
Highlight:

rj45 smd connector

,

shielded rj45 plugs

Part Number:
JM56311-K001-4F
Connector Type:
RJ11
PIN Type:
THT Solder
Orientation:
90~ Angle (Right)
Temperature:
-40 TO + 85
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Part Number:
JM56311-K001-4F
Connector Type:
RJ11
PIN Type:
THT Solder
Orientation:
90~ Angle (Right)
Temperature:
-40 TO + 85
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
JM56311-K001-4F Unshielded Single Port RJ45 Connector Without LED LPJEF710DNL
JM56311-K001-4F Unshielded Single Port RJ45 Connector Without LED LPJEF710DNL

Quick Details



♦  Designed for network interface card application.
♦  Designed to meet IEEE802.3u requirement.
♦  Single Port 8p8c RJ45 Female Connector 5555154-2
♦  RJ11 Connector without Integrated Magnetics
♦  Unshielded Tab Down Without LED

♦  5555154-2 Cross LPJEF710DNL



Description



1x1 Port 8P8C RJ45 Female Connector without Integrated Magnetics , Without LED,Tab Down,RoHS
Part Number JM56311-K001-4F
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"/50u"
Cores per Port NO
Diodes NO DIODES
LED Option Without LEDS
Latch TAB DOWN
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.500
Package Height (mm) 12.70
Package Length (Inches) 0.725
Package Length (mm) 18.42
Package Width (Inches) 0.594
Package Width (mm) 15.10
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed Without Magnetics
Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
LINK-PP Part Number LPJEF710DNL



Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
