TM-5JSMT8811ET2L1-C8 Tab Up SMT RJ45 Connector With LEDs LPJES101XAGNL

China TM-5JSMT8811ET2L1-C8 Tab Up SMT RJ45 Connector With LEDs LPJES101XAGNL supplier

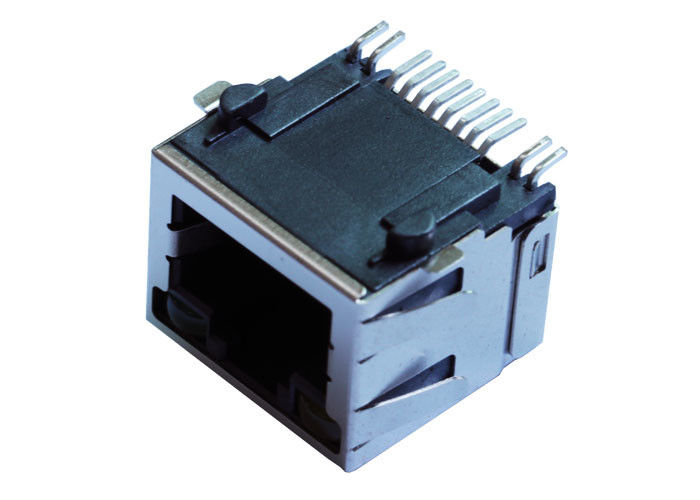

Large Image :  TM-5JSMT8811ET2L1-C8 Tab Up SMT RJ45 Connector With LEDs LPJES101XAGNL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: TM-5JSMT8811ET2L1-C8

Payment & Shipping Terms:

Minimum Order Quantity: 1200
Price: Supportive&Competitive
Packaging Details: 200PCS/Reel,6Reels/Carton,1200PCS/Carton.Size-42x41x35mm,Weight12KG
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specifications: TM-5JSMT8811ET2L1-C8 Samples: Available
Application: Cat5/5e Termination: Solder
LEDs: YELLOW / GREEN Optional Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

TM-5JSMT8811ET2L1-C8 Tab Up SMT RJ45 Connector With LEDs LPJES101XAGNL

  • Surface Mount Rj45 Connector
  • SMT FASTJack Right Angle.
  • SMD Rj45 Connector
  • SMT Jack SMT Rj45 Jack
  • SMT MAGJack SMT Rj45 Vertical
  • SMT Modular Jack Rj45 Connector
  • SMT Rj45 Connector SMD
  • SMT Rj45 Connector Smd POE Rj45
SMT RJ45 Connector without Integrated Magnetics,Yellow/Green LED,Tab Up,RoHS
LINK-PP Part Number LPJES101XAGNL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option YELLOW/GREEN
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.531
Package Height (mm) 13.50
Package Length (Inches) 0.620
Package Length (mm) 15.75
Package Width (Inches) 0.652
Package Width (mm) 16.55
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed WITHOUT MAGNETICS
Temperature - 40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Applications:


Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
