Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: RM2-148A8M1F(XA)
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Spec: |
RM2-148A8M1F(XA) |
Equivalent: |
LPJ17206AGNL |
Shield: |
Shielded |
Application: |
PC Mainboard, SDH, PDH, IP Phone |
Mounting: |
Through Hole |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Spec: |
RM2-148A8M1F(XA) |
Equivalent: |
LPJ17206AGNL |
Shield: |
Shielded |
Application: |
PC Mainboard, SDH, PDH, IP Phone |
Mounting: |
Through Hole |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |

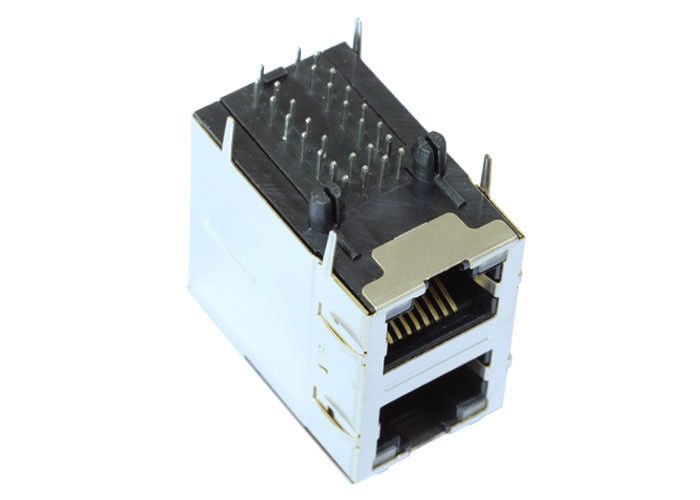

| 2X1 Port RJ45 Connector Magjack with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJ17206AGNL |
| Part Number | RM2-148A8M1F(XA) |
| Application-Lan | ETHERNET(NoN PoE) |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | YELLOW/GREEN |
| Latch | TAB DOWN/UP |
| Number of Ports | 2X1 |
| PCB Mount Angle | SIDE ENTRY |
| Package Height (mm) | 25.30 |
| Package Length (mm) | 28.49 |
| Package Width (mm) | 16.70 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100 BASE-T |
| Temperature | -40 TO + 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
