Home ProductsVertical RJ45 Jack

A00-108-620-450 Vertical Entry RJ45 Jack Without Magnetic Unshielded LPJE681NNL

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

A00-108-620-450 Vertical Entry RJ45 Jack Without Magnetic Unshielded LPJE681NNL

China A00-108-620-450 Vertical Entry RJ45 Jack Without Magnetic Unshielded LPJE681NNL supplier
A00-108-620-450 Vertical Entry RJ45 Jack Without Magnetic Unshielded LPJE681NNL supplier A00-108-620-450 Vertical Entry RJ45 Jack Without Magnetic Unshielded LPJE681NNL supplier

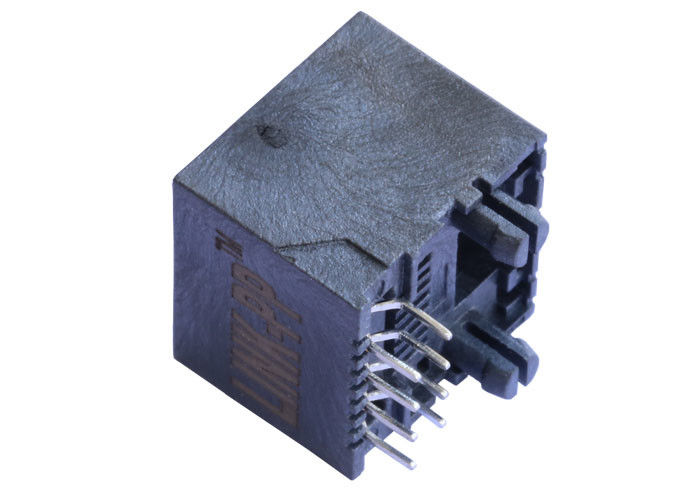

Large Image :  A00-108-620-450 Vertical Entry RJ45 Jack Without Magnetic Unshielded LPJE681NNL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: A00-108-620-450

Payment & Shipping Terms:

Minimum Order Quantity: 200 PCS
Price: $0.79↑
Packaging Details: 60 pcs in 1 tray,20tray in 1 carton, which is 37*30*30 cm, 11KGS (1200 pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: A00-108-620-450 Mass Production: LPJE681NNL
Termination: Solder LEDs: Optional
Type: DIP / Top Entry File: PDF/3D/ISG/Stp/Step/Datasheet

A00-108-620-450 Vertical Entry RJ45 Jack Without Magnetic Unshielded LPJE681NNL



Quick Details



1. RJ45 1X1 Vertical
2. Through Hole
4. Vertical RJ45 Jack

5. Designing Model : A00-108-620-450

6. Mass Production Model : LPJE681NNL



Description


Vertical RJ45 Female Connector without Magnetics,Without LED,RoHS
LINK-PP Part Number LPJE681NNL
Part Number A00-108-620-450
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Diodes NO DIODES
LED Option WITHOUT LED
Latch TAB UP
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 16.05
Package Length (mm) 15.35
Package Width (mm) 16.10
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years



546-844-19 Magnetic RJ45 1000 Base - T Jack Female Connector LPJK0071CNL



Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Delivery Time:2-3 Weeks After Orders

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT



Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy



LINK-PP Corporate Policy

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services
