XRJD-S-23-8-8-4-DJ1 Multi - Port 2x3 Port 8P8C RJ45 Female Connector LPJE231AHNL

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: XRJD-S-23-8-8-4-DJ1

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

modular jacks rj45

Part Number:
XRJD-S-23-8-8-4-DJ1
Mass Production:
LPJE231AHNL
Applications:
2x3 Port
Mounting Type:
Through Hole
Shielding:
Shielded, EMI Finger
File:
PDF/3D/ISG/Stp/Step/Datasheet
Part Number:
XRJD-S-23-8-8-4-DJ1
Mass Production:
LPJE231AHNL
Applications:
2x3 Port
Mounting Type:
Through Hole
Shielding:
Shielded, EMI Finger
File:
PDF/3D/ISG/Stp/Step/Datasheet

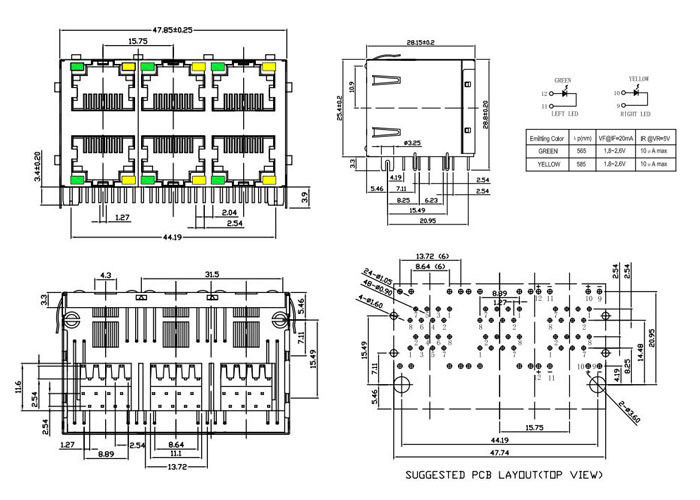

XRJD-S-23-8-8-4-DJ1 Multi - Port 2x3 Port 8P8C RJ45 Female Connector LPJE231AHNL
XRJD-S-23-8-8-4-DJ1 Multi-Port 2x3 Port 8P8C RJ45 Female Connector LPJE231AHNL



2x3 Port 8P8C RJ45 Female Connector without Integrated Magnetics,Green/Yellow LED,Tab Up/Tab Down,RoHS
LINK-PP Part Number LPJE231AHNL
Part Number XRJD-S-23-8-8-4-DJ1
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port NO
Diodes NO DIODES
LED Option Green/Yellow LEDS
Latch TAB UP/TAB DOWN
Number of Ports 2X3
PCB Mount Angle SIDE ENTRY
Package Height (mm) 25.40
Package Length (mm) 28.15
Package Width (mm) 47.15
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed without Magnetics
Temperature - 40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
