13F-39DNL Ethernet Magnetic Transformers 10/100Mbps Low Profile

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: 13F-39DNL

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

10/100base-t magnetics

,

ethernet transformer

Specifications:
13F-39DNL
Ethernet:
10/100Mbps
Mounting:
SMD
Ratio:
1CT:1CT
Samples:
Free
File:
PDF/3D/ISG/Stp/Step/Datasheet
Specifications:
13F-39DNL
Ethernet:
10/100Mbps
Mounting:
SMD
Ratio:
1CT:1CT
Samples:
Free
File:
PDF/3D/ISG/Stp/Step/Datasheet

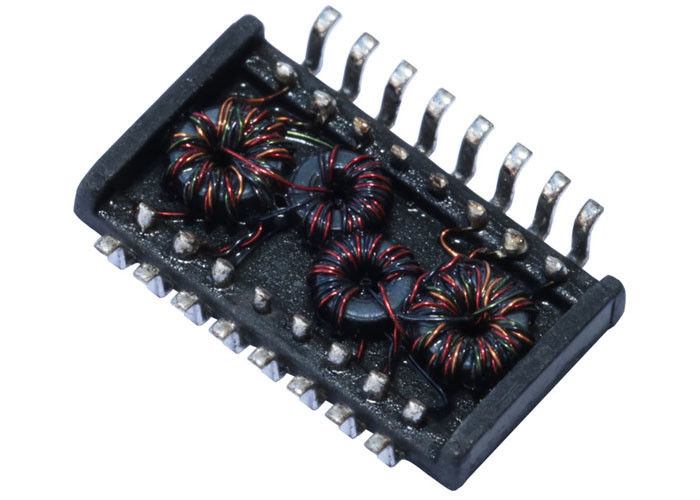

13F-39DNL Ethernet Magnetic Transformers 10/100Mbps Low Profile
13F-39DNL Ethernet Magnetic Transformers 10/100Mbps Low Profile

  1. 10/100Mbps Transformer
  2. Single Port Transformer Modules
  3. SMT Transformer Low Profile 1.98mm Height Max
  4. Coils: 4
  5. 12.7x9.52x1.98mm
1.Turns Ratio(±5%):
TX=1CT∶1CT RX=1CT∶1CT
2.Inductance OCL:
350uH Min @ 100KHz 0.1V
4.Hipot: 1500VAC 1S 1mA
5.Insertion Loss:
-1.0dB MAX @ 0.3KHz -100MHz
6.Return Loss:
-18dB MIN @ 30MHz
-12dB MIN @ 60MHz
-12dB MIN @ 80MHz
7.Crosstalk:
-45dB MIN @ 30MHz
-40dB MIN @ 62MHz
-35dB MIN @ 100MHz
8.DCMR:
-40dB MIN @ 30MHz
-35dB MIN @ 50MHz
-30dB MIN @ 100MHz
9.Operating Temperature: 0℃~70℃.
