101210F90SPM416ZA Stacked RJ45 2x1 Magnetics Connector With LEDs LPJ17409-7A8NL

China 101210F90SPM416ZA Stacked RJ45 2x1 Magnetics Connector With LEDs LPJ17409-7A8NL supplier
101210F90SPM416ZA Stacked RJ45 2x1 Magnetics Connector With LEDs LPJ17409-7A8NL supplier 101210F90SPM416ZA Stacked RJ45 2x1 Magnetics Connector With LEDs LPJ17409-7A8NL supplier

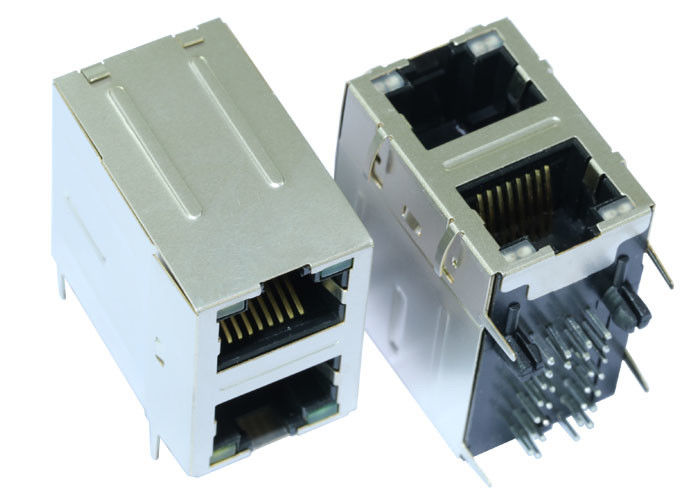

Large Image :  101210F90SPM416ZA Stacked RJ45 2x1 Magnetics Connector With LEDs LPJ17409-7A8NL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008
Model Number: 101210F90SPM416ZA

Payment & Shipping Terms:

Minimum Order Quantity: 500 / 2K, 20K
Price: Supportive
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 6000K/month
Contact Now
Detailed Product Description
Spec: 101210F90SPM416ZA Port: 2x1 Female Rj45
LED: GREEN / GREEN,YELLOW Mounting: Side Entry (Right Angle)
Cross Ref: LPJ17409-7A8NL File: PDF/3D/ISG/Stp/Step/Datasheet

XRJD-S-21-8-8-5 Stacked RJ45 2x1 Without Magnetics Connector LPJE106-3AWNL

  • 101210F90SPM416ZA 2x1 Ports Gigabit Female Socket Rj45
  • Complies with requirement of IEEE 802.3ab standards.
  • RJ-45 connector integrated with transformer/impedance resistor/high voltage capacitor.
  • Size same as RJ-45 connector to save PCB board space.
  • Reduced EMI radiation to improve EMI performance.
  • Compliance with ROHS requirements.
  • Operating Temperature Range: -10℃ TO +70℃
  • Storage Temperature: -40 to 85 ℃ ℃
Part Number 101210F90SPM416ZA
LINK-PP Part Number LPJ17409-7A8NL
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Temperature -10 TO 70℃
Diodes NO DIODES
LED Option GREEN/GREEN,YELLOW
Shielding Shielded, EMI Finger
Mounting Type Through Hole
Orientation 90° Angle (Right)
Latch TAB DOWN/UP
Number of Ports 2X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 25.78
Package Length (mm) 28.40
Package Width (mm) 17.27
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
