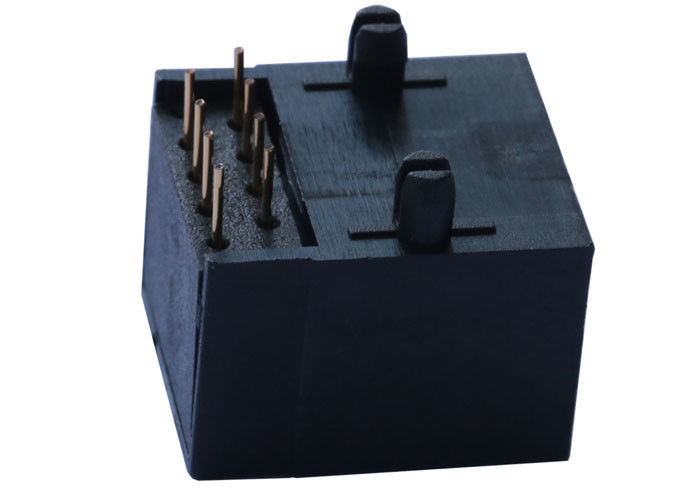

323526 Unshielded Tab Down RJ45 Single Port Connector LPJE121NNL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 323526

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50PCS/tray;1200PCS/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4000K/month

Get Best Price
Highlight:

rj45 smd connector

,

shielded rj45 plugs

Specification:
323526
Cross Part NO:
LPJE121NNL
Mounting:
Thru-hole R/A
Samples:
Available 2-3 Pcs
Latch:
Tab Down
Files:
PDF/3D/ISG/Stp/Step/Datasheet
Specification:
323526
Cross Part NO:
LPJE121NNL
Mounting:
Thru-hole R/A
Samples:
Available 2-3 Pcs
Latch:
Tab Down
Files:
PDF/3D/ISG/Stp/Step/Datasheet
323526 Unshielded Tab Down RJ45 Single Port Connector LPJE121NNL
323526 Unshielded Tab Down RJ45 Single Port Connector LPJE121NNL
  • 1X1 Port RJ45 Jack LPJE121NNL
  • Unshielded Tab Down RJ45 Without LEDs 323526
  • Rj45 Network Port 8p8c jack
  • Ethernet Female Connector
1X1 RJ45 8P8C Connector without Integrated Magnetics, Without LED, RoHS
LINK-PP Part Number LPJE121NNL
Part Number 323526
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 1.5u"/3u"/6u"/15u"/30u"/50u"
Cores per Port Without Integrated Magnetics
Diodes NO DIODES
LED Option Without LED
Latch TAB DOWN
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 12.80
Package Length (mm) 20.60
Package Width (mm) 10.00
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Without
Speed WITHOUT MAGNETICS
Storage -40 TO +85℃
Operation 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
