RJE724881401 / RJE72-488-1401 Rj45 1x4 Quad Port Ethernet Jack LPJE4718AGNL

RJE724881401 / RJE72-488-1401 Rj45 1x4 Quad Port Ethernet Jack LPJE4718AGNL
RJE724881401 / RJE72-488-1401 Rj45 1x4 Quad Port Ethernet Jack LPJE4718AGNL RJE724881401 / RJE72-488-1401 Rj45 1x4 Quad Port Ethernet Jack LPJE4718AGNL

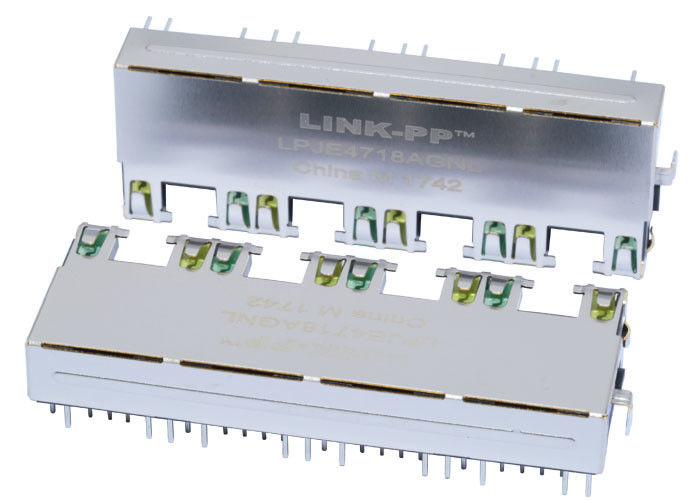

Large Image :  RJE724881401 / RJE72-488-1401 Rj45 1x4 Quad Port Ethernet Jack LPJE4718AGNL

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: RJE724881401 / RJE72-488-1401
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Detailed Product Description
Specification: RJE724881401 / RJE72-488-1401 Part No: LPJE4718AGNL
Ethernet: 1X4 Indicators: LEDs
Samples: Available File: PDF/3D/ISG/Stp/Step/Datasheet
Highlight:

modular jacks rj45

,

dual rj45 jack

RJE724881401 / RJE72-488-1401 Rj45 1x4 Quad Port Ethernet Jack LPJE4718AGNL
  1. LINK-PP LPJE4718AGNL Four Port Filter Rj-45
  2. Cross Equivalent to RJE724881401 / RJE72-488-1401
  3. Rj45 With Integrated Magnetics Industry standard
  4. Fully IEEE803.2 Compliant over entire temperature range -40°C to +85°C
Part Number RJE724881101 / RJE72-488-1101
LINK-PP Part Number LPJE4718AGNL
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Temperature -40 TO + 85℃
Diodes NO DIODES
LED Option YELLOW/GREEN
Shielding EMI Finger
Mounting Type Through Hole
Orientation 90° Angle (Right)
Latch TAB UP
Number of Ports 1X4
PCB Mount Angle SIDE ENTRY
Package Height (mm) 11.85
Package Length (mm) 59.00
Package Width (mm) 20.70
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
