Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: RJHSE-5380
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Latch: |
TAB UP |
Number Of Ports: |
Single Port |
Mounting: |
Side Entry (Right Angle) |
Jack Gender: |
Female |
Shielding: |
With EMI Finger |
LED Option: |
Without |
Latch: |
TAB UP |
Number Of Ports: |
Single Port |
Mounting: |
Side Entry (Right Angle) |
Jack Gender: |
Female |
Shielding: |
With EMI Finger |
LED Option: |
Without |

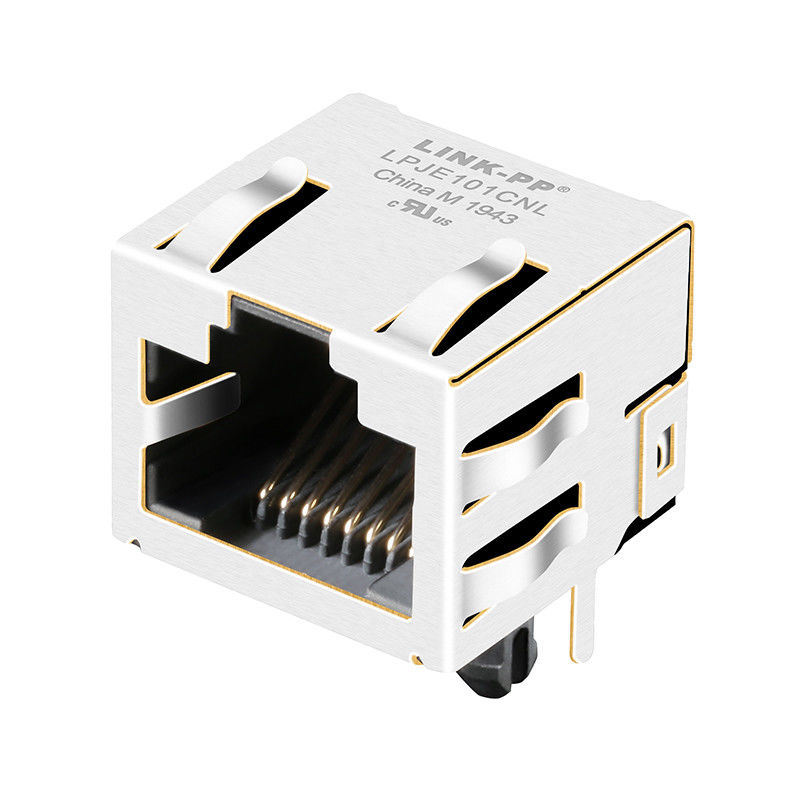

RJHSE-5380 Single Port 8P8C RJ45 Connector 90 Degree LPJE101-0CNL
| Part Number | RJHSE-5380 |
| LINK-PP Part Number | LPJE101-0CNL |
| Application-Lan | ETHERNET(NoN PoE) |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Temperature | -40 TO + 85℃ |
| Diodes | NO DIODES |
| LED Option | WITHOUT |
| Shielding | EMI Finger |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB Mount Angle | SIDE ENTRY |
| Package Height (mm) | 13.10 |
| Package Length (mm) | 15.75 |
| Package Width (mm) | 16.26 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
