E5J88-30L052-L Thru - Hole Rj45 Connectors With LED 8P8C Shielded LPJE101-3NHNL

China E5J88-30L052-L Thru - Hole Rj45 Connectors With LED 8P8C Shielded LPJE101-3NHNL supplier

Large Image :  E5J88-30L052-L Thru - Hole Rj45 Connectors With LED 8P8C Shielded LPJE101-3NHNL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: SGS,ISO,UL,Reach,RoHS
Model Number: E5J88-30L052-L

Payment & Shipping Terms:

Minimum Order Quantity: 500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 4-5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 350000-420000/Month
Contact Now
Detailed Product Description
Specifications: E5J88-30L052-L P.N: LPJE101-3NHNL
Port: 1x1 Single LEDs: Green / Yellow
Samples: Available 1-3 Pcs File: PDF/3D/ISG/Stp/Step/Datasheet

RJHSE538B Thru-Hole Rj45 Connectors With LED 8P8C Shielded LPJE101A65NL



LINK-PP Part Number LPJE101A65NL
Part Number RJHSE538B
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Temperature -40 TO + 85℃
Diodes NO DIODES
LED Option GREEN,RED/GREEN,RED
Shielding Shielded, EMI Finger
Mounting Type Through Hole
Orientation 90° Angle (Right)
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.516
Package Height (mm) 13.10
Package Length (Inches) 0.640
Package Length (mm) 16.26
Package Width (Inches) 0.620
Package Width (mm) 15.75
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



PCB JACK SPECIFICATION

  • Insulation Resistance:500MΩMIN @ 500 VDC

  • Withstanding Voltage:AC1000V 50Hz or 60Hz 1min.

  • Durability:600 Mating Circles MIN.

  • Gold Plating:(Gold Flash;1.5;3;6;15;30;50)U" Inch

  • (1)Storage: -40℃ to +85℃
    (2)Opertion: -40℃ to +85℃
    (3)Wave solder temperture:230℃ to 250℃,5~10 Sec.

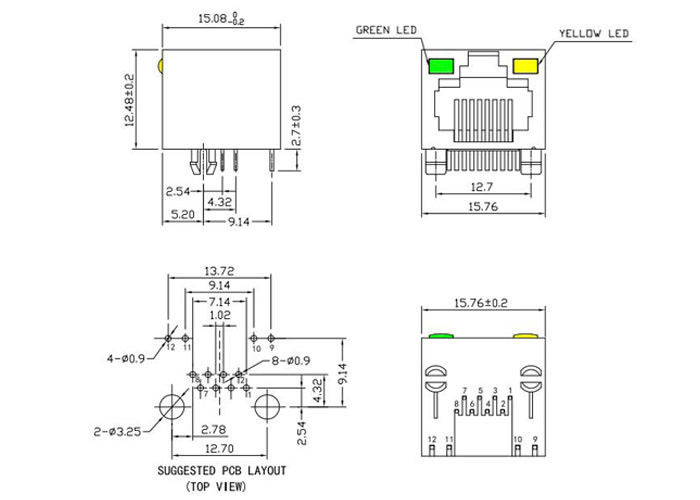

E5J88-30L052-L Thru - Hole Rj45 Connectors With LED 8P8C Shielded LPJE101-3NHNL

E5J88-30L052-L Thru - Hole Rj45 Connectors With LED 8P8C Shielded LPJE101-3NHNL

RJHSE538B Thru-Hole Rj45 Connectors With LED 8P8C Shielded LPJE101A65NL
