54602-9F10LF Unshielded Tab Down RJ45 Single Port Connector LPJE901NNL

China 54602-9F10LF Unshielded Tab Down RJ45 Single Port Connector LPJE901NNL supplier
54602-9F10LF Unshielded Tab Down RJ45 Single Port Connector LPJE901NNL supplier 54602-9F10LF Unshielded Tab Down RJ45 Single Port Connector LPJE901NNL supplier

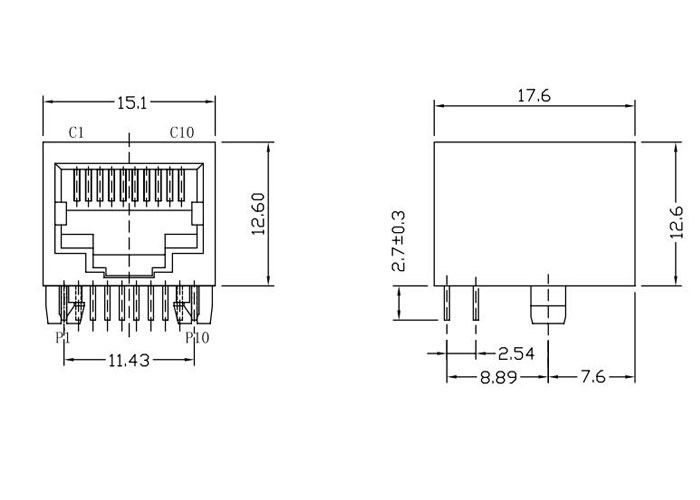

Large Image :  54602-9F10LF Unshielded Tab Down RJ45 Single Port Connector LPJE901NNL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,REACH,RoHS
Model Number: 54602-9F10LF

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000
Price: Supportive&Discounted
Packaging Details: 50PCS/tray;1200PCS/carton
Delivery Time: 4-5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4000K/month
Contact Now
Detailed Product Description
Specification: 54602-9F10LF Cross Part NO: LPJE901NNL
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs
Latch: Tab Down Files: PDF/3D/ISG/Stp/Step/Datasheet

54602-9F10LF Unshielded Tab Down RJ45 Single Port Connector LPJE901NNL



1X1 RJ45 8P8C Connector without Integrated Magnetics, Without LED, RoHS
LINK-PP Part Number LPJE901NNL
Part Number 54602-9F10LF
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 1.5u"/3u"/6u"/15u"/30u"/50u"
Cores per Port Without Integrated Magnetics
Diodes NO DIODES
LED Option Without LED
Latch TAB DOWN
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 12.60
Package Length (mm) 17.60
Package Width (mm) 15.10
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Without
Speed WITHOUT MAGNETICS
Storage -40 TO +85℃
Operation -40 TO +85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
