Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: RTA-173AAK13
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Negotiable
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 5100K/month
Product Name: |
RTA-173AAK13 |
Color: |
Silver |
Shield Material: |
Copper Alloy |
Application: |
HUB, PC Card, Switch, Router Etc |
PCB Mounting Orientation: |
Through Hole |
Alternate Rf: |
LPJG17305-1BSNL |
Magnetic: |
10/100Base-T |
Function: |
Lan Port Female Connected |
Product Name: |
RTA-173AAK13 |
Color: |
Silver |
Shield Material: |
Copper Alloy |
Application: |
HUB, PC Card, Switch, Router Etc |
PCB Mounting Orientation: |
Through Hole |
Alternate Rf: |
LPJG17305-1BSNL |
Magnetic: |
10/100Base-T |
Function: |
Lan Port Female Connected |
NOTES :
Description:

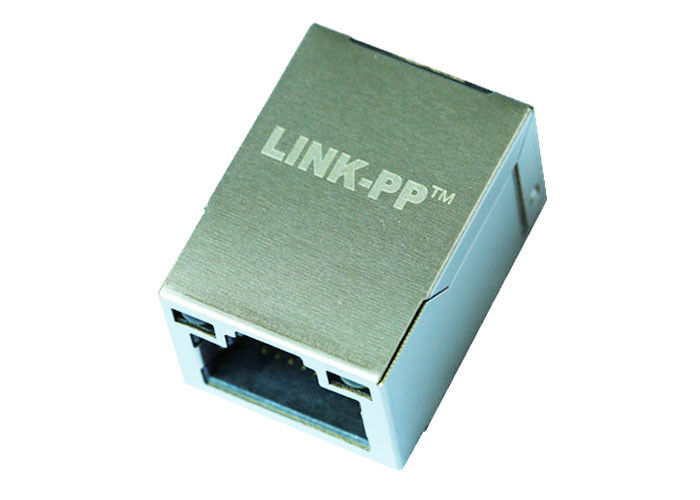

| Single Port RJ45 Connector with 1000 Base-T Integrated Magnetics,Orange&Green/Yellow LED,Tab Up,RoHS | |
| LINK-PP Part Number | LPJG17305-1BSNL |
| UDE Part Number | RTA-164AAK1A |
| Application-Lan | ETHERNET(NoN PoE) |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 12 |
| Diodes | NO DIODES |
| LED Option | YELLOW/ORANGE&GREEN/ |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (mm) | 13.50 |
| Package Length (mm) | 25.40 |
| Package Width (mm) | 16.25 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 1000 BASE-T |
| Temperature | 0 TO + 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Applications:
VME, VPX, and VXI Controllers and Processors
Vacuum Fluorescent Displays
Data Acquisition Computer Boards
Point of Sale and Kiosk Computers
Competitive Advantage:
16 years production experience,
2600 staff,
100% test
Flexible delivery time
