2250067-6 10/100 BASE-T Magnetic RJ45 Modular Jack With LEDs LPJ16264B28NL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 2250067-6

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Negotiable

Packaging Details: Tray, Tape & Reel

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 5100K/month

Get Best Price
Highlight:

rj45 with magnetics

,

rj45 magnetic jack

Product Name:
2250067-6
Alternate Rf:
LPJ16264B28NL
Application:
HUB, PC Card, Switch, Router Etc
PCB Mounting Orientation:
Through Hole
Magnetic:
10/100Base-T
Function:
Lan Port Female Connected
Sample:
Free
File:
PDF/3D/ISG/Stp/Step/Datasheet
Product Name:
2250067-6
Alternate Rf:
LPJ16264B28NL
Application:
HUB, PC Card, Switch, Router Etc
PCB Mounting Orientation:
Through Hole
Magnetic:
10/100Base-T
Function:
Lan Port Female Connected
Sample:
Free
File:
PDF/3D/ISG/Stp/Step/Datasheet

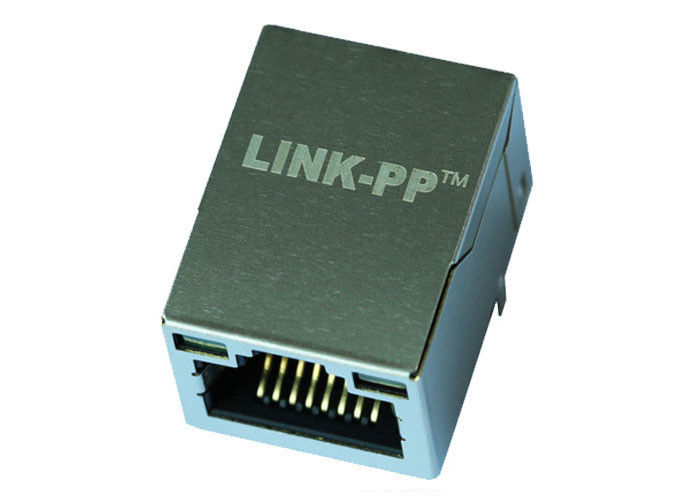

2250067-6 10/100 BASE-T Magnetic RJ45 Modular Jack With LEDs LPJ16264B28NL
2250067-6 10/100 BASE-T Magnetic RJ45 Modular Jack With LEDs LPJ16264B28NL



NOTES :

  1. 10/100 BASE-T RJ45 Jack
  2. TAB UP WITH LED
  3. PIN TO PIN LPJ16264B28NL
  4. Dimension : 21.25X15.95X13.45mm

Description:



Single Port RJ45 Connector with 1000 Base-T Integrated Magnetics,Orange&Green/Yellow LED,Tab Up,RoHS
LINK-PP Part Number LPJ16264B28NL
UDE Part Number 2250067-6
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (mm) 13.45
Package Length (mm) 21.25
Package Width (mm) 15.95
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature 0 TO + 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



2250067-6 10/100 BASE-T Magnetic RJ45 Modular Jack With LEDs LPJ16264B28NL 0

Applications:

VME, VPX, and VXI Controllers and Processors

Vacuum Fluorescent Displays

Data Acquisition Computer Boards

Point of Sale and Kiosk Computers
