Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 5557730-1
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Part Number: |
5557730-1 |
Connector Type: |
RJ45 |
PIN Type: |
THT Solder |
Orientation: |
90～ Angle (Right) |
Temperature: |
-40 TO + 85 |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Part Number: |
5557730-1 |
Connector Type: |
RJ45 |
PIN Type: |
THT Solder |
Orientation: |
90～ Angle (Right) |
Temperature: |
-40 TO + 85 |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |

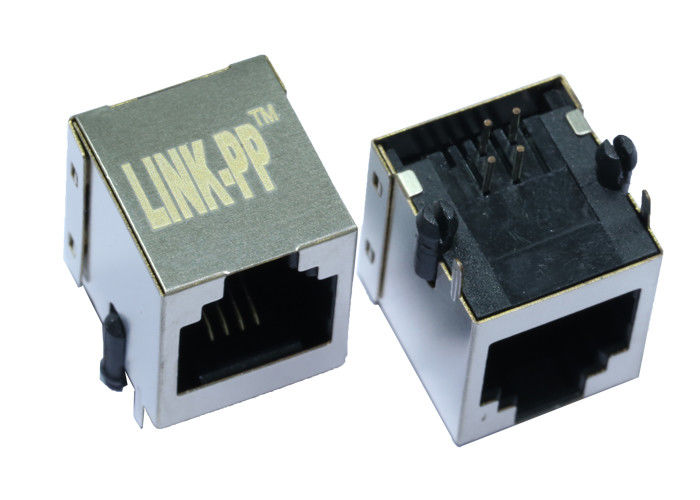

| 1x1 Port 8P8C RJ45 Female Connector without Integrated Magnetics , Without LED,Tab Down,RoHS | |
| Part Number | 5557730-1 |
| LINK-PP Part Number | LPJE680DNL |
| Application-Lan | ETHERNET(NoN PoE) |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u"/50u" |
| Cores per Port | NO |
| Diodes | NO DIODES |
| LED Option | Without LEDS |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB Mount Angle | SIDE ENTRY |
| Package Height (mm) | 13.10 |
| Package Length (mm) | 15.75 |
| Package Width (mm) | 16.26 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITHOUT |
| Speed | Without Magnetics |
| Temperature | -40 TO 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
LINK-PP Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
