Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: HY911261C
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Part Number: |
HY911261C |
Cross&Datasheet: |
LPJG26806ABNL |
Apllication: |
10 Base-TX |
Original Munafactuer: |
LINK-PP |
Project Application: |
NETWORK INTERFACE CARD |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Part Number: |
HY911261C |
Cross&Datasheet: |
LPJG26806ABNL |
Apllication: |
10 Base-TX |
Original Munafactuer: |
LINK-PP |
Project Application: |
NETWORK INTERFACE CARD |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |

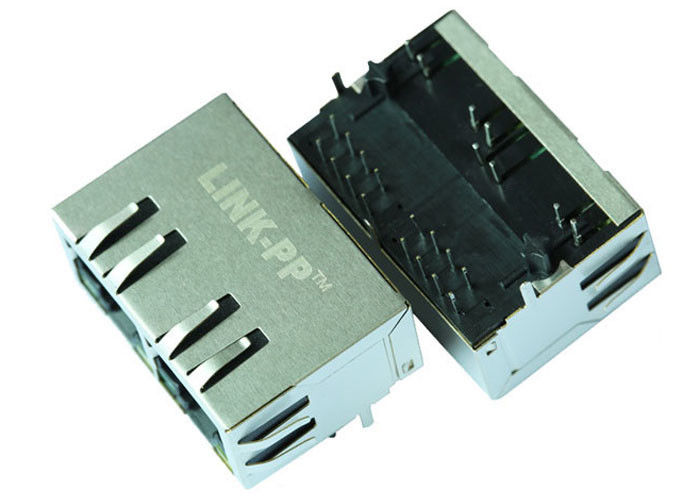

| Shielded 1X2 RJ45 Female Connector with 1000 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJG26806ABNL |
| Hanrun Part Number | HR911261C |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | GREEN/YELLOW |
| Latch | TAB DOWN |
| Number of Ports | 1X2 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.531 |
| Package Height (mm) | 13.50 |
| Package Length (Inches) | 0.839 |
| Package Length (mm) | 21.30 |
| Package Width (Inches) | 1.231 |
| Package Width (mm) | 31.28 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 1000 BASE-T |
| Temperature | 0 TO + 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
