HY981106A Ethernet RJ45 Connector With Dual USB LPJU5111BGNL

China HY981106A Ethernet RJ45 Connector With Dual USB LPJU5111BGNL supplier
HY981106A Ethernet RJ45 Connector With Dual USB LPJU5111BGNL supplier HY981106A Ethernet RJ45 Connector With Dual USB LPJU5111BGNL supplier

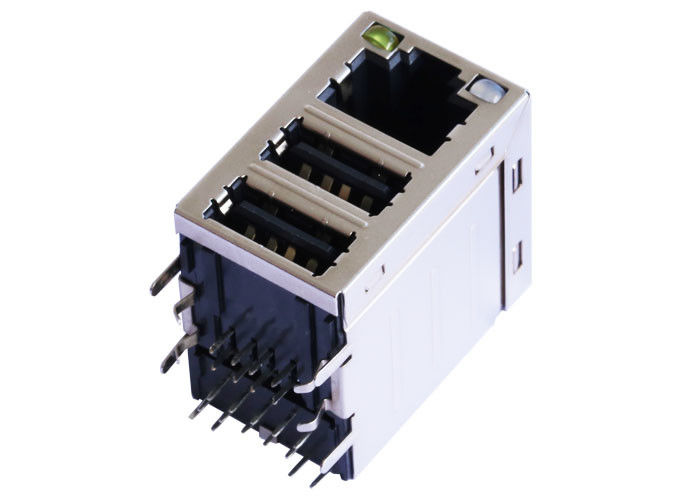

Large Image :  HY981106A Ethernet RJ45 Connector With Dual USB LPJU5111BGNL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: HY981106A

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: 0.5~10 USD/PCS
Packaging Details: package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: 3-30 work days
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: HY981106A Specification: LPJU5111BGNL
Apllication: 10/100 Or 1000Base-T(x) Original Munafactuer: LINK-PP
Mail Customer: Ti, Intel, Cisco, Samsung, Fluke, Arduino ,Hp,Jabil,Flextronics File: PDF/3D/ISG/Stp/Step/Datasheet

HY981106A Ethernet RJ45 Connector With Dual USB LPJU5111BGNL



Ethernet RJ45 Connector with 10/100 Base-T Integrated Magnetics With Dual USB,Yellow/Green LED,Tab Up,RoHS
LINK-PP Part Number LPJU5111BGNL
Part Number HY981106A
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option YELLOW/GREEN
Latch TAB UP
Number of Ports SINGLE PORT WITH DUAL USB
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.238
Package Height (mm) 31.45
Package Length (Inches) 1.090
Package Length (mm) 27.69
Package Width (Inches) 0.751
Package Width (mm) 19.08
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
