Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HY981141A
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Part Number: |
HY981141A |
Cross&Datasheet: |
LPJU5202BONL |
Apllication: |
RJ45 +2USB |
Original Munafactuer: |
LINK-PP |
Project Application: |
Modular Industrial Ethernet Interface |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Part Number: |
HY981141A |
Cross&Datasheet: |
LPJU5202BONL |
Apllication: |
RJ45 +2USB |
Original Munafactuer: |
LINK-PP |
Project Application: |
Modular Industrial Ethernet Interface |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Competitor Cross Reference

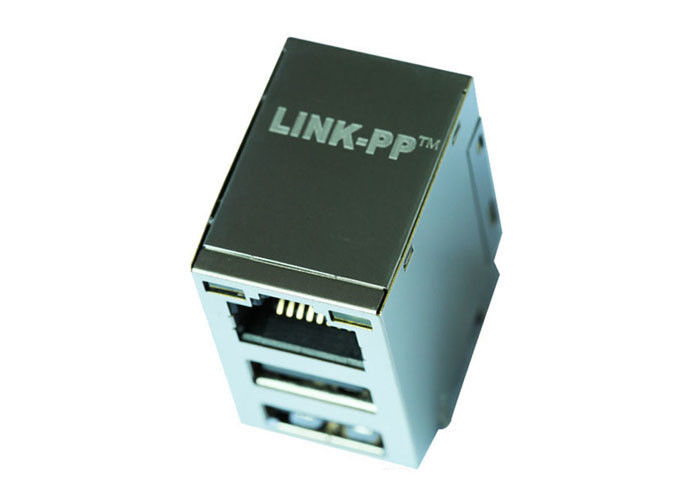

RJ45 Magjack with 10/100/1000 Base-T Integrated Magnetics With Dual USB,Orange&Green/Yellow LED,Tab Up,RoHS | |
LINK-PP Part Number | LPJU5202BONL |
Application-Lan | ETHERNET(NoN PoE) |
AutomDX | YES |
Bst Circuit | YES |
Configuration RX | T,C |
Configuration TX | T,C |
Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
Cores per Port | 12 |
Diodes | NO DIODES |
LED Option | ORANGE&GREEN/YELLOW |
Latch | TAB UP |
Number of Ports | SINGLE PORT WITH SINGLE USB |
PCB | FR4 |
PCB Mount Angle | SIDE ENTRY |
PCB Retaining Post | T POST |
Package Height (Inches) | 1.238 |
Package Height (mm) | 31.45 |
Package Length (Inches) | 1.090 |
Package Length (mm) | 27.69 |
Package Width (Inches) | 0.751 |
Package Width (mm) | 19.08 |
Pin Type | THT SOLDER |
RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
Search | YES |
Shield EMI Tabs | WITH |
Speed | 10/100/1000 BASE-T |
Temperature | 0 TO 70℃ |
Turns Ratio RX | 1CT:1CT |
Turns Ratio TX | 1CT:1CT |
