HY981160C 10/100 Base - T Ethernet RJ45 Connector With Dual USB LPJU4111AONL

China HY981160C 10/100 Base - T Ethernet RJ45 Connector With Dual USB LPJU4111AONL supplier
HY981160C 10/100 Base - T Ethernet RJ45 Connector With Dual USB LPJU4111AONL supplier HY981160C 10/100 Base - T Ethernet RJ45 Connector With Dual USB LPJU4111AONL supplier

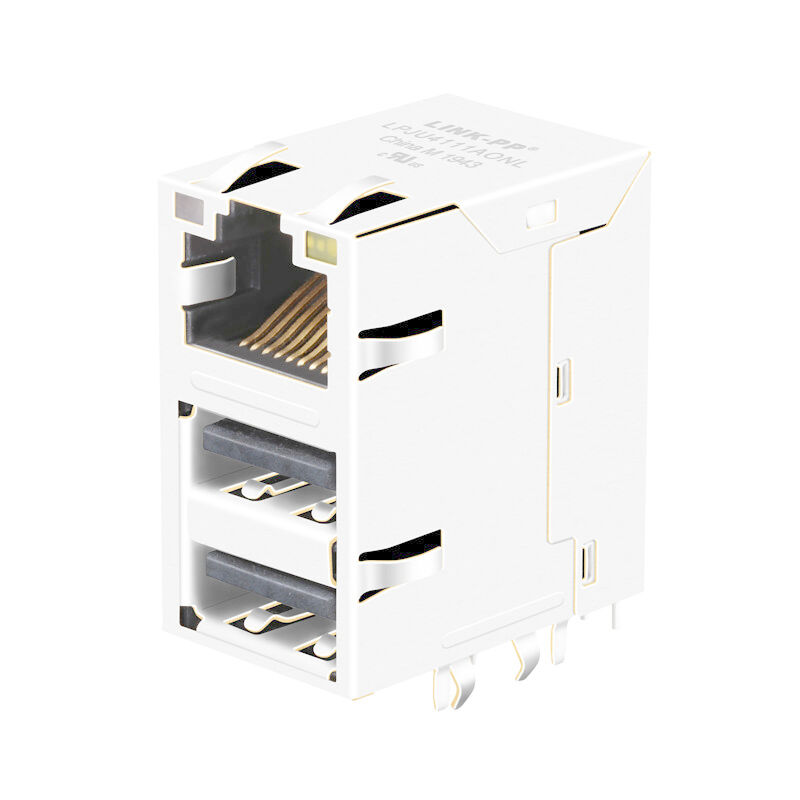

Large Image :  HY981160C 10/100 Base - T Ethernet RJ45 Connector With Dual USB LPJU4111AONL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008
Model Number: HY981160C

Payment & Shipping Terms:

Minimum Order Quantity: 500,5K
Price: Supportive
Packaging Details: Tray Package
Delivery Time: 4-5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4300K/month
Contact Now
Detailed Product Description
Spec: HY981160C PCB Mounting Orientation: Side Entry (Right Angle)
Connector: Jack Female Port Configuration: Single With Dual USB
PIN TO PIN: LPJU4111AONL File: PDF/3D/ISG/Stp/Step/Datasheet

HY981160C 10/100Base-T Ethernet RJ45 Connector With Dual USB LPJU4111AONL



Specifications



Part Number HY981160C
LINK-PP Part Number LPJU4111AONL
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"/50u"
Cores Per Port 4
Diodes NO DIDES41
LED Option WITH LEDS
Latch UP/DOWN
Number of Ports SINGLE PORT WITH DUAL USB
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH OR WITHOUT
Speed 10/100 BASE-T
Temperature 0 TO 70°C/-40 TO 85°C
Turns Ratio RX 1CT:1
Turns Ratio TX 1CT:1
