HR941132C 1000 Base - T Ehternet 1X1 RJ45 Modular Jack LPJG0803G25NL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: HR941132C

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price
Highlight:

rj-45 ethernet jack

,

industrial rj45 connector

Pn#:
HR941132C
Equivalent:
LPJG0803G25NL
Interface:
1000Base-T
Samples:
Available 2-3 Pcs
LED Option:
ORANGE&GREEN/YELLOW
File:
PDF/3D/ISG/Stp/Step/Datasheet
Pn#:
HR941132C
Equivalent:
LPJG0803G25NL
Interface:
1000Base-T
Samples:
Available 2-3 Pcs
LED Option:
ORANGE&GREEN/YELLOW
File:
PDF/3D/ISG/Stp/Step/Datasheet

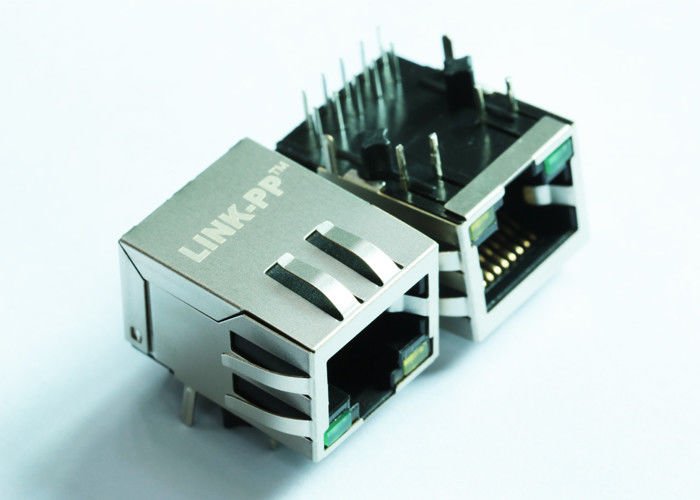

HR941132C 1000 Base - T Ehternet 1X1 RJ45 Modular Jack LPJG0803G25NL
HR941132C 1000 Base - T Ehternet 1X1 RJ45 Modular Jack LPJG0803G25NL



1. 1 x 10/100 Mbit Ehternet

2. Right Angle Rj45 8 Position

3. Tab-down, LED Inline

4. Hipot from Imput to output : 1500Vrms



Description:

Single Port Modular RJ45 Jack with 1000 Base-T Integrated Magnetics,Orange&Green/Yellow LED,Tab Down,RoHS
LINK-PP Part Number LPJG0803G25NL
Part Number HR941132C
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option ORANGE&GREEN/YELLOW
Latch TAB DOWN
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 13.40
Package Length (mm) 21.30
Package Width (mm) 15.90
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
