Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: RN2-ZZ-0006
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Designe PN#: |
RN2-ZZ-0006 |
Samples: |
Available Free |
Orientation: |
90° Angle (Right) |
Interface: |
1000Base-T, AutoMDIX |
LED: |
Flexible |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Designe PN#: |
RN2-ZZ-0006 |
Samples: |
Available Free |
Orientation: |
90° Angle (Right) |
Interface: |
1000Base-T, AutoMDIX |
LED: |
Flexible |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |

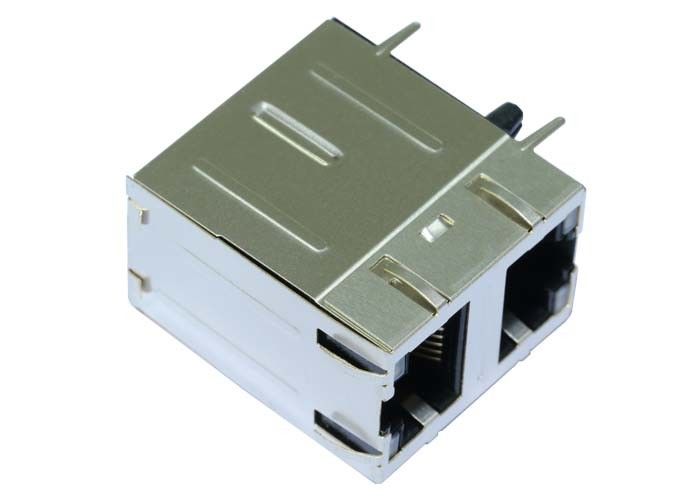

| 2x1 RJ45 Connector with 10/100/1000 Magnetics,Green/Yellow LED,Tab Up/Tab Down,RoHS | |
| LINK-PP Part Number | LPJG17702A109NL |
| Application-Lan | ETHERNET(NoN PoE) |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 12 |
| Diodes | NO DIODES |
| LED Option | GREEN/YELLOW |
| Latch | TAB UP/TAB DOWN |
| Number of Ports | 2X1 |
| PCB Mount Angle | SIDE ENTRY |
| Package Height (mm) | 25.79 |
| Package Length (mm) | 38.30 |
| Package Width (mm) | 17.21 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 1000 BASE-T |
| Temperature | -40 TO + 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
