Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: HR85111OC
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Part Number: |
HR85111OC |
Cross&Datasheet: |
LPJ1141AGNL |
Apllication: |
10/100 |
Original Munafactuer: |
LINK-PP |
Project Application: |
NETWORK INTERFACE CARD |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Part Number: |
HR85111OC |
Cross&Datasheet: |
LPJ1141AGNL |
Apllication: |
10/100 |
Original Munafactuer: |
LINK-PP |
Project Application: |
NETWORK INTERFACE CARD |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Competitor Cross Reference

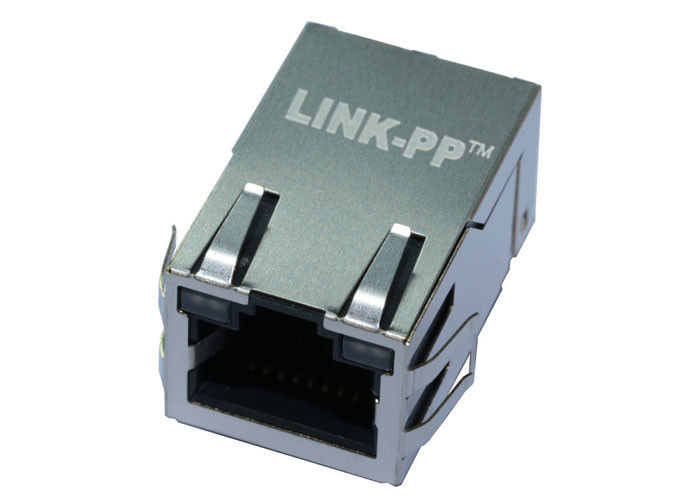

| Single Port Modular RJ45 Jack with 10/100 Base-T Integrated Magnetics,Yellow/Green LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJ1141AGNL |
| Part Number | HR85111OC |
| Application-Lan | ETHERNET(NoN PoE) |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | YELLOW/GREEN |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB Mount Angle | SIDE ENTRY |
| Package Height (mm) | 13.50 |
| Package Length (mm) | 25.40 |
| Package Width (mm) | 16.25 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
