Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: HR991175C
Payment & Shipping Terms
Minimum Order Quantity: 200 PCS
Price: $1.35
Packaging Details: 60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Part Number: |
HR991175C |
Mass Production: |
LPJ19155CNL |
Connector Type: |
RJ45 |
Applications: |
10Base-T |
Mounting Type: |
Surface Mount |
Orientation: |
90～ Angle (Right) |
Termination: |
Solder |
Shielding: |
Shielded, EMI Finger |
Part Number: |
HR991175C |
Mass Production: |
LPJ19155CNL |
Connector Type: |
RJ45 |
Applications: |
10Base-T |
Mounting Type: |
Surface Mount |
Orientation: |
90～ Angle (Right) |
Termination: |
Solder |
Shielding: |
Shielded, EMI Finger |
Designing Model: 【HR991175C】 Mass Production Model:【LPJ19155CNL】
♦ Designed for network interface card application.
♦ Designed to meet IEEE802.3u requirement.
♦ Available in all turn ratios used by LAN ICmanufactures.
♦ Primary center taps available for additional EMIreduction.
♦ Simplest magnetic component to place androute on PCB.
♦ Conserves minimizing PCB space.
MAG.REVERSE LATCH ,
LED optional ; EMI-finger Optional.

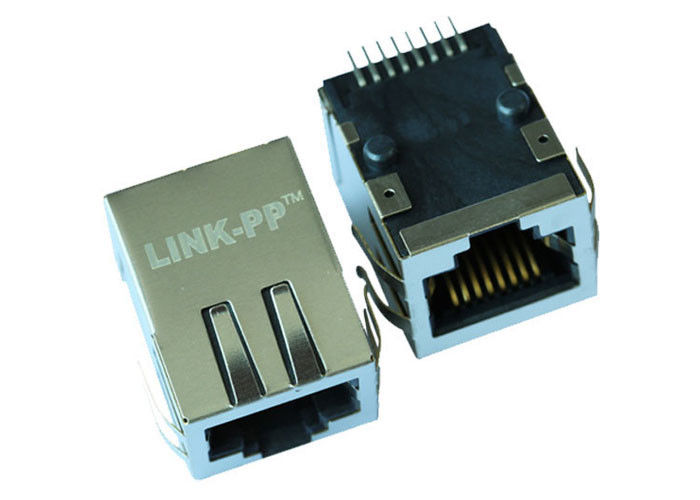

| SMT RJ45 Connector with 10 Base-T Integrated Magnetics,Without LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJ19155CNL |
| HanRun Part Number | HR991175C |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | WITHOUT LEDS |
| Latch | TAB DOWN |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (mm) | 13.60 |
| Package Length (mm) | 21.95 |
| Package Width (mm) | 16.26 |
| Pin Type | SURFACE MOUNT |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
