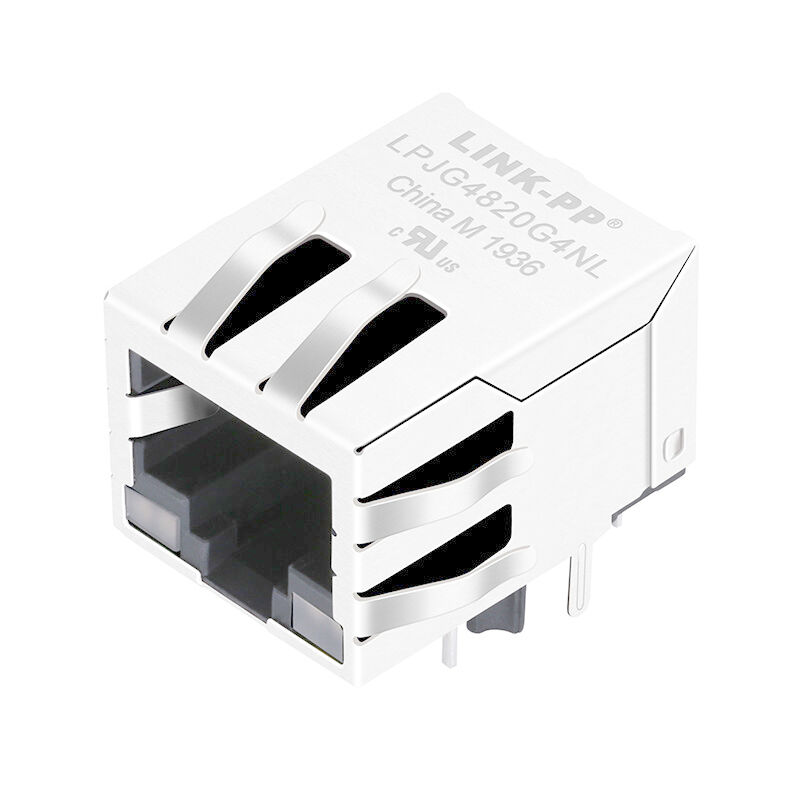

SI-61044-F Single Port Gigabit Rj45 Jack Shield With LEDs LPJG4820G4NL

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: SI-61044-F

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price
Highlight:

rj45 smd connector

,

shielded rj45 plugs

Part Number:
SI-61044-F
Specification:
LPJG4820G4NL
Apllication:
Gigabit Single Port Rj45
Original Munafactuer:
LINK-PP
Project Application:
NETWORK INTERFACE CARD
File:
PDF/3D/ISG/Stp/Step/Datasheet
Part Number:
SI-61044-F
Specification:
LPJG4820G4NL
Apllication:
Gigabit Single Port Rj45
Original Munafactuer:
LINK-PP
Project Application:
NETWORK INTERFACE CARD
File:
PDF/3D/ISG/Stp/Step/Datasheet
SI-61044-F Single Port Gigabit Rj45 Jack Shield With LEDs LPJG4820G4NL
SI-61044-F Single Port Gigabit Rj45 Jack Shield With LEDs LPJG4820G4NL

Shielded 1x1 Port RJ45 Female Connector with 10/100 Base-T Integrated Magnetics,Green&Yellow/Green&Yellow LED,Tab Down,RoHS
LINK-PP Part Number LPJG4820G4NL
Belfuse Part Number SI-61044-F
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes YES
LED Option Green&Yellow/Green&Yellow
Latch TAB Down
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.524
Package Height (mm) 13.30
Package Length (Inches) 0.837
Package Length (mm) 21.25
Package Width (Inches) 0.627
Package Width (mm) 15.93
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 10/100/1000 Base-T
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

SI-61044-F Single Port Gigabit Rj45 Jack Shield With LEDs LPJG4820G4NL 0
