Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

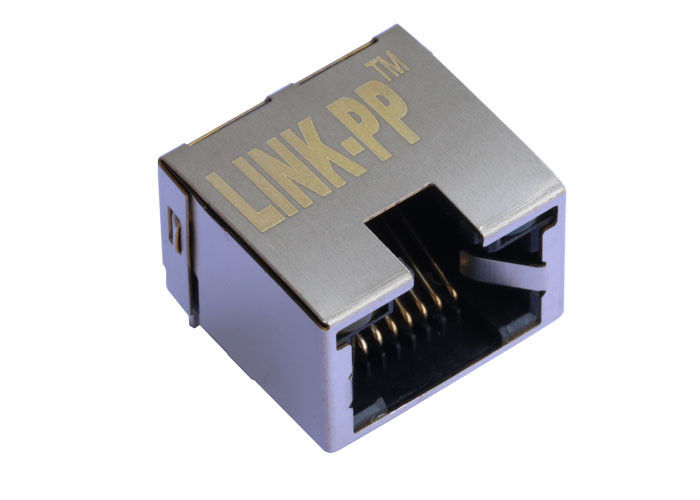

Model Number: 615008185121
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.08-$1.79
Packaging Details: 60pcs/tray,or Reel Package
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 2800K-PCS/Month
Part Number: |
615008185121 |
Mass Production: |
LPJE841-0BGNL |
Original Munafactuer: |
LINK-PP |
Termination: |
Solder |
LEDs: |
Optional |
Mount Style: |
DIP / Side Entry |
Part Number: |
615008185121 |
Mass Production: |
LPJE841-0BGNL |
Original Munafactuer: |
LINK-PP |
Termination: |
Solder |
LEDs: |
Optional |
Mount Style: |
DIP / Side Entry |
1. RoHS “NL” peak solder rating 260°C
2. Low height and small footprint to minimize board space
3. Meets IEEE 802.3 specification
4. 350µH minimum OCL with 8mA bias current
5. High performance for maximum EMI suppression
6. Designing Model: 【615008185121】
7. Mass Production Model:【LPJE841-0BGNL】
| Part Number | 615008185121 |
| Diodes | NO DIODES |
| LED Option | YELLOW/GREEN |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| Package Height (mm) | 11.30 |
| Package Length (mm) | 16.18 |
| Package Width (mm) | 15.00 |
| Shield EMI Tabs | WITH |
| Temperature | -40 TO +85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
Competitive Advantage
18 years production experience,
2600 staff,
100% test
Flexible delivery time
Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
EMS Application
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
Features and Benefits:
RoHS peak wave solder temperature rating 260°C
USB module complies with USB 2.0 standards
RJ45 connection meets CAT3, 5e & 6 Fast Ethernet performance standard
Electrical Performance Summary:
Meets IEEE 802.3 specification
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
