TG110-S055N2LF 10/100BASE-T Lan Transformer Magnetics Modules LP1102NL

China TG110-S055N2LF 10/100BASE-T Lan Transformer Magnetics Modules LP1102NL supplier
TG110-S055N2LF 10/100BASE-T Lan Transformer Magnetics Modules LP1102NL supplier TG110-S055N2LF 10/100BASE-T Lan Transformer Magnetics Modules LP1102NL supplier

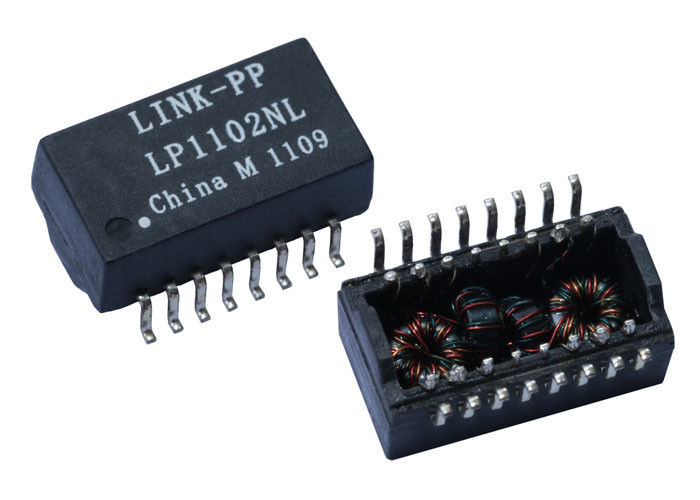

Large Image :  TG110-S055N2LF 10/100BASE-T Lan Transformer Magnetics Modules LP1102NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: TG110-S055N2LF

Payment & Shipping Terms:

Minimum Order Quantity: 750PCS
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T,Paypal,Western Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: TG110-S055N2LF Cross: H1102NL
Interface: 10/100base-T Original Munafactuer: LINK-PP
Samples: Available Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

TG110-S055N2LF 10/100BASE-T Lan Transformer Magnetics Modules LP1102NL



10/100 Base -T Single Port Transformer Modules, SMD,Rohs
LINK-PP Part Number LP1102NL
Halo Part Number TG110-S055N2LF
Speed 10/100BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature 0 TO 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 4
Number of Ports SINGLE
Package Height (Inches) 0.191
Package Height (mm) 4.85
Package Length (Inches) 0.504
Package Length (mm) 12.8
Package Width (Inches) 0.366
Package Width (mm) 9.3
Hi-pot 1500Vrms
OCL 350uh min
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
LINK-PP cross other Halo parts for reference
LINK-PP Part Number Halo Part Number
LP1183NLE TG110-S050N2
LP1198NL TG110-050N5RL
LP1302NL TG110-3506N5
LP2019ANL TG110-RPE5N5RL
LP21617NL TG41-2006NRL



Cooperative Partner:

Intel

LINK-PP Is the preferred supplier of Intel.

LINK-PP LPJG16314A4NL is used in MinnowBoard max of Intel.

TG110-S055N2LF 10/100BASE-T Lan Transformer Magnetics Modules LP1102NL



Texas Instruments

LINK-PP is the preferred supplier of TI.

Welcome to visit the TI website: http://www.ti.com/tool/beaglebk#0

You will look at our logo "LINK-PP" on BeagleBone Board.

TG110-S055N2LF 10/100BASE-T Lan Transformer Magnetics Modules LP1102NL



Meet or exceeds IEEE802.3 standard

Relative humidity = 70%±10% RH

Operating temperature = -40℃~80℃

Current rating = 1A MAX

Voltage Rating = 150V AC MAX.

Main use =

*Communication Equipment:Telephone (Telephone Jack),Fax machine…

*Network Equipment (8P8C Jack and 6P6C Jack Series):Modem,Hub,Switch,Router,Gateway,Repeater,Bridge, PC motherboard, Note PC (Note book)
