Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: HR911170A
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
P.N: |
HR911170A |
Specification: |
LPJ0022FBNL |
Files: |
3D Step , IGS , PDF Datasheet |
Interface: |
10/100 Mbps |
Samples: |
5 Pcs Free |
Project Original: |
BeagleBone Black |
P.N: |
HR911170A |
Specification: |
LPJ0022FBNL |
Files: |
3D Step , IGS , PDF Datasheet |
Interface: |
10/100 Mbps |
Samples: |
5 Pcs Free |
Project Original: |
BeagleBone Black |

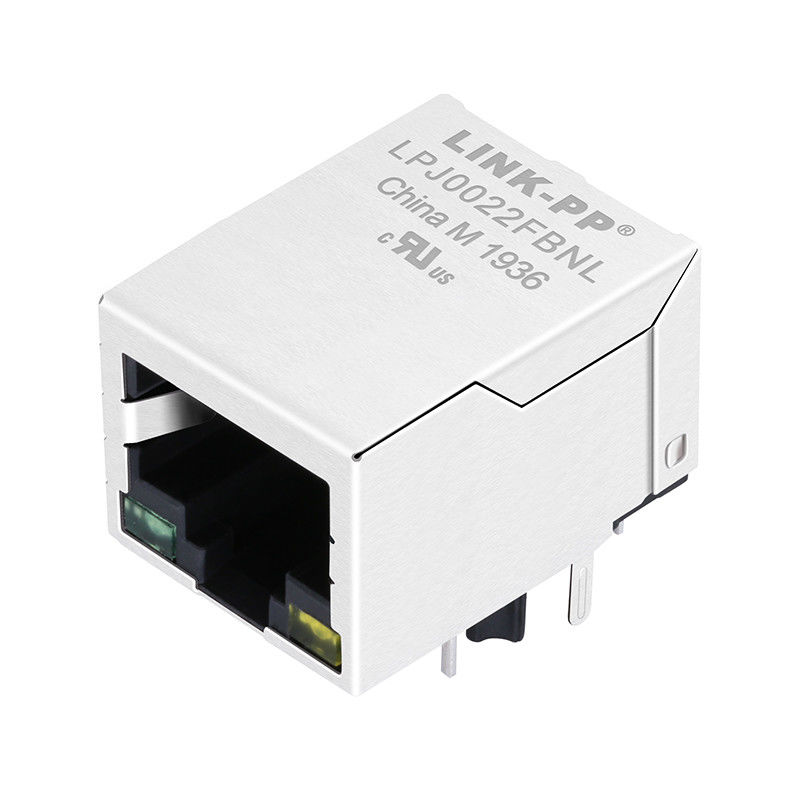

| 10 Base-T Single Port RJ45 Connector Female Jack LPJ0022FBNL 100% Cross Hanrun HR911170A | |
| LINK-PP Part Number | LPJ0022FBNL |
| Hanrun Part Number | HR911170A |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 2 |
| Diodes | NO DIODES |
| LED Option | GREEN/YELLOW |
| Latch | TAB DOWN |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.524 |
| Package Height (mm) | 13.30 |
| Package Length (Inches) | 0.837 |
| Package Length (mm) | 21.25 |
| Package Width (Inches) | 0.627 |
| Package Width (mm) | 15.93 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDEREXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITHOUT |
| Speed | 10 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
| LINK-PP cross other Hanrun parts for reference | |
| LINK-PP Part Number | Hanrun Part Number |
| LPJG17577A47NL | HR872148H |
| LPJ0011EBNL | HR911105C |
| LPJ0011FBNL | HY911105A / HR911105A |
| LPJ0013DNL | HY901129A |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
•Delivery Time:2-3 Weeks After Orders
Professional Certification
•ISO 9001:2008 ,ISO 14001:2008
•UL KC CE FCC Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
LINK-PP Corporate Policy
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
|
