1840257-6 Stacked 2x6 Port Magjack 8P8C Rj45 Modular Jack LPJG67020A27NL

China 1840257-6 Stacked 2x6 Port Magjack 8P8C Rj45 Modular Jack LPJG67020A27NL supplier
1840257-6 Stacked 2x6 Port Magjack 8P8C Rj45 Modular Jack LPJG67020A27NL supplier 1840257-6 Stacked 2x6 Port Magjack 8P8C Rj45 Modular Jack LPJG67020A27NL supplier

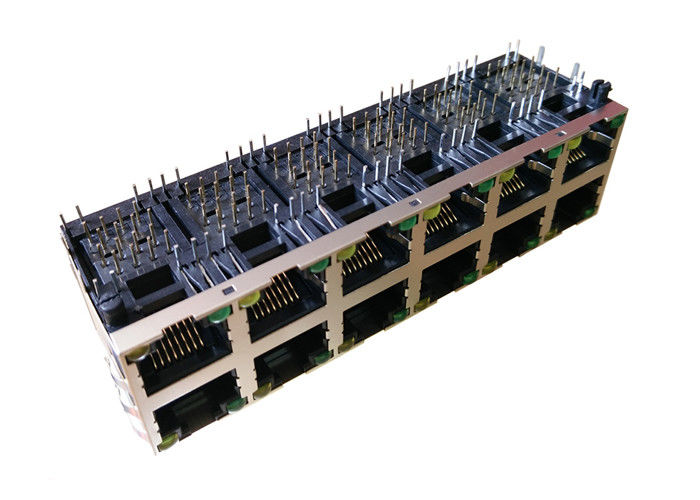

Large Image :  1840257-6 Stacked 2x6 Port Magjack 8P8C Rj45 Modular Jack LPJG67020A27NL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 1840257-6

Payment & Shipping Terms:

Minimum Order Quantity: 200 / 1000 / 5000
Price: Supportive & 60% Discounted
Packaging Details: Tray & Cartons
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Spec: 1840257-6 Alternate: LPJG67020A27NL
Family: 12 Port Magnetic Rj45 Mounting: Through Hole
Standard: IEEE802.3af/ Ieee802.3at File: PDF/3D/ISG/Stp/Step/Datasheet

1840257-6 Stacked 2x6 Port Magjack 8P8C Rj45 Modular Jack LPJG67020A27NL

2X6 Port 8P8C RJ45 Female Connector with 1000 Base-T Transformer,Green/Orange&Green LED,Tab Up/Down,RoHS
LINK-PP Part Number LPJG67020A27NL
Part Number
1840257-6
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Green/Orange&Green LEDS
Latch TAB UP/TAB DOWN
Number of Ports 2X6
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.015
Package Height (mm) 25.79
Package Length (Inches) 1.118
Package Length (mm) 28.40
Package Width (Inches) 3.426
Package Width (mm) 87.02
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 Base-T
Temperature 0 TO + 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
1840257-6 Stacked 2x6 Port Magjack 8P8C Rj45 Modular Jack LPJG67020A27NL
