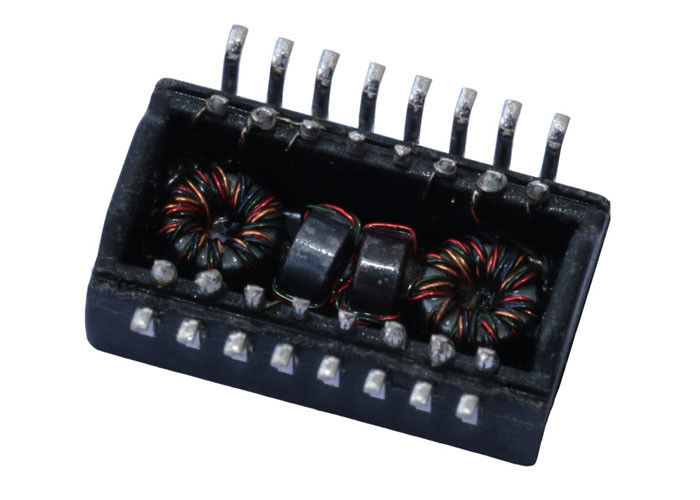

HR678700E Ethernet LAN Magnetic Transformer With 10/100Base-T LP1188NL

China HR678700E Ethernet LAN Magnetic Transformer With 10/100Base-T LP1188NL supplier
HR678700E Ethernet LAN Magnetic Transformer With 10/100Base-T LP1188NL supplier HR678700E Ethernet LAN Magnetic Transformer With 10/100Base-T LP1188NL supplier

Large Image :  HR678700E Ethernet LAN Magnetic Transformer With 10/100Base-T LP1188NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: HR678700E

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specification: HR678700E Apllication: 10/100base-T
Original Munafactuer: LINK-PP Application: Lan Ethernet (NON PoE)
Temperature: - 40℃ TO + 85℃ Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

HR678700E Ethernet LAN Magnetic Transformer With 10/100Base-T LP1188NL
Single Port, 10/100 BASE-T Ethernet Transformer Modules, SMD,Rohs
LINK-PP Part Number LP1188NL
Hanrun Part Number HR678700E
Speed 10/100 BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature - 40 TO + 85
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 4
Package Height (Inches) 0.281
Package Height (mm) 7.15
Package Length (Inches) 0.366
Package Length (mm) 9.30
Package Width (Inches) 0.450
Package Width (mm) 11.45
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Why Choose LINK-PP

Business Partner:

Texas Instruments
LINK-PP is the preferred supplier of TI.
Welcome to visit the TI website: http://www.ti.com/tool/beaglebk#0
You will look at our logo "LINK-PP" on BeagleBone Board.

HR678700E Ethernet LAN Magnetic Transformer With 10/100Base-T LP1188NL

Business Partner:

Texas Instruments
LINK-PP is the preferred supplier of TI.
Welcome to visit the TI website: http://www.ti.com/tool/beaglebk#0
You will look at our logo "LINK-PP" on BeagleBone Board.

HR678700E Ethernet LAN Magnetic Transformer With 10/100Base-T LP1188NL

Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time

EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly

Industrial application:

Accurate and efficient detection of precision equipment

We own a wide range of customer groups that involve the industry of data communications, telecommunications, automobile industries, consumer goods, medical, new energy resources, military supplies, computer and computer peripheral equipment and more.

LINK-PP in addition to meet with ISO standards of quality assurance system and complete laboratory , with the green environmental protection design concept and reference to international and domestic standards, we create a new generation of environmental protection products. We set up a RoHS analysis laboratory, it has the ICP-OES analyzer can be used for the determination of heavy metal lead, cadmium, mercury and UV analyzer for the quantitative analysis of hexavalent chromium. When the control of RoHS is controlled for raw materials, it is included in the inspection control to achieve the effect of monitoring and prevention.
