H1313NL 10/100Base-T Magnetics Single Port Power Ethernet Module LP1197NL

China H1313NL 10/100Base-T Magnetics Single Port Power Ethernet Module LP1197NL supplier
H1313NL 10/100Base-T Magnetics Single Port Power Ethernet Module LP1197NL supplier H1313NL 10/100Base-T Magnetics Single Port Power Ethernet Module LP1197NL supplier

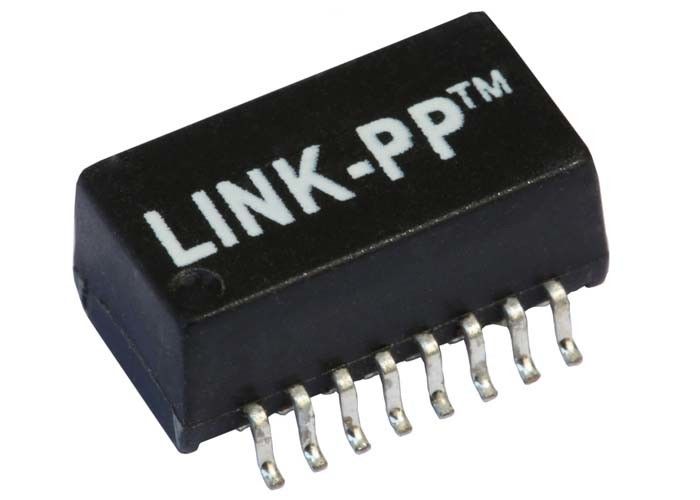

Large Image :  H1313NL 10/100Base-T Magnetics Single Port Power Ethernet Module LP1197NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,SGS,Reach,RoHS
Model Number: H1313NL

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3800000PCS/Month
Contact Now
Detailed Product Description
Specifications: H1313NL P/N: LP1197NL
Mounting: SMD Measure: 12.7x9.30x6.20mm
Ethernet: 1x 10/100 Samples: Free
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

H1313NL 10/100Base-T Magnetics Single Port Power Ethernet Module LP1197NL



  1. Single Port Magnetics Transformer Module
  2. 24pins Surface Mounting Isolated Transformer
  3. LINK-PP LP1197NL
  4. IEEE 802.3af
  5. Support 350mA -600mA max Current
  6. Cost Effective
Single Port, 10/100 BASE-T Pulse Electronics Ethernet Transformer Modules & PoE, SMD,Rohs
LINK-PP Part Number LP1197NL
Part Number H1313NL
Speed 10/100BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (PoE)
Package SMD
Temperature - 40 TO + 85
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 2
Package Height (Inches) 0.244
Package Height (mm) 6.20
Package Length (Inches) 0.50
Package Length (mm) 12.70
Package Width (Inches) 0.366
Package Width (mm) 9.30
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Competitive Advantage



☛ RoHS peak reflow temperature rating 245°C
☛Symmetrical transmit and recieve channels for Auto MDI/MDIX capability
☛Approved for use with the Broadcom BCM5226 and Level One LXT9784
☛Meets IEEE 802.3 specification
☛ Designer and Manufacturer for 18 years.

☛ 2500 Works, 4 plants

☛ Definitely Pass Fluke network analyzer

☛ Stock or 4 weeks.
☛ Flexible design according to customers' required informations without any exral fee.



Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years



H1313NL 10/100Base-T Magnetics Single Port Power Ethernet Module LP1197NL



Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT

•Delivery Time:2-3 Weeks After Orders



Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy



LINK-PP Corporate Policy

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service
