Home > products > Magnetic RJ45 Jack > 24-30011MN21-3 Tab Up 1000Base-T Magnetic RJ45 Jack With LEDs LPJG16543BFNL

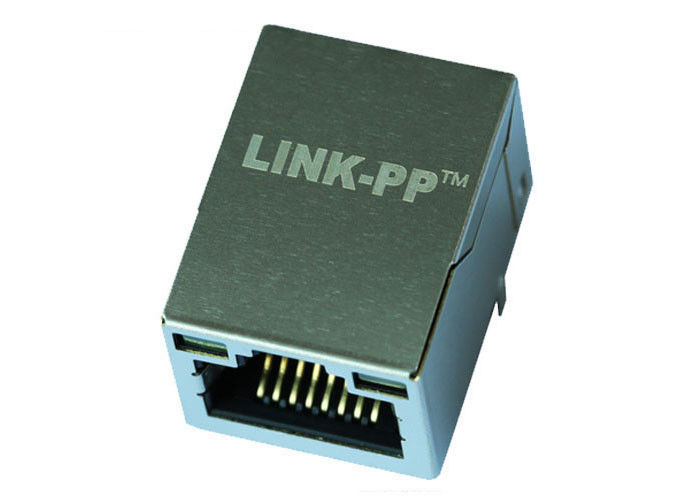

24-30011MN21-3 Tab Up 1000Base-T Magnetic RJ45 Jack With LEDs LPJG16543BFNL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 24-30011MN21-3

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

rj45 with magnetics

Part Number:
LPJG16543BFNL
Cross&Datasheet:
24-30011MN21-3
Apllication:
1000 Base-T(x)
Original Munafactuer:
LINK-PP
Mail Customer:
Ti, Intel, Cisco, Samsung, Fluke, Arduino ,Hp,Jabil,Flextronics
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Part Number:
LPJG16543BFNL
Cross&Datasheet:
24-30011MN21-3
Apllication:
1000 Base-T(x)
Original Munafactuer:
LINK-PP
Mail Customer:
Ti, Intel, Cisco, Samsung, Fluke, Arduino ,Hp,Jabil,Flextronics
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
24-30011MN21-3 Tab Up 1000Base-T Magnetic RJ45 Jack With LEDs LPJG16543BFNL
24-30011MN21-3 Tab Up 1000Base-T Magnetic RJ45 Jack With LEDs LPJG16543BFNL



LINK-PP Part Number LPJG16543BFNL
Part Number 24-30011MN21-3
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option GREEN/GREEN
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (mm) 13.45
Package Length (mm) 21.25
Package Width (mm) 15.95
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature 0 TO + 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Our main products

• 10/100/1000M Lan Transformer and Filter

• RJ45 Connector with 10/100/1000M Magnetic

• Optical Transceiver Modules



Packing and shipping

• Packing:Tray, reel, carton,vacuum packing for rj45 with transformer

• Shipping: DHL, FedEx, UPS, EMS, TNT



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years



Our service

• Free samples (excluding freight charge)

• 1 year guarantee period

• Online technical supported

• Factory evaluation anytime

• OEM and ODM orders are welcome

• Free Samples Are Available

• 90% Off Shipping Cost By DHL UPS DEDEX Or TNT

• Delivery Time:2-3 Weeks After Orders

• Provide New Design For Customer Requirements



Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy



LINK-PP Corporate Policy

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service



24-30011MN21-3 Tab Up 1000Base-T Magnetic RJ45 Jack With LEDs LPJG16543BFNL 0
