Tab Up Single Port Four CT Separately Gigabit Rj45 Magnetic Jack LPJK4071AONL

China Tab Up Single Port Four CT Separately Gigabit Rj45 Magnetic Jack LPJK4071AONL supplier
Tab Up Single Port Four CT Separately Gigabit Rj45 Magnetic Jack LPJK4071AONL supplier Tab Up Single Port Four CT Separately Gigabit Rj45 Magnetic Jack LPJK4071AONL supplier Tab Up Single Port Four CT Separately Gigabit Rj45 Magnetic Jack LPJK4071AONL supplier

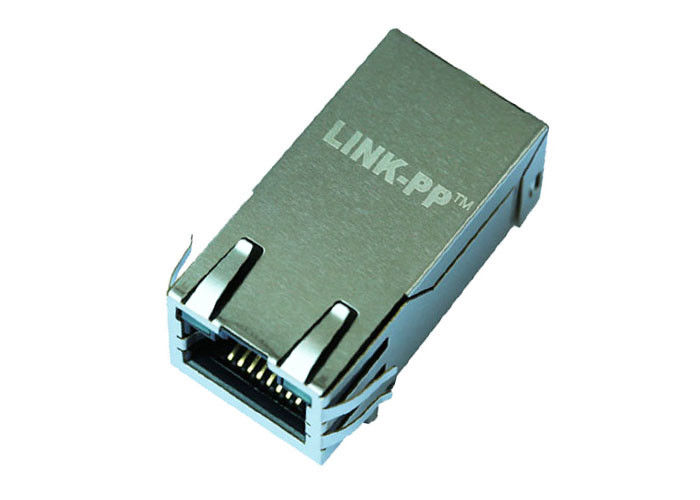

Large Image :  Tab Up Single Port Four CT Separately Gigabit Rj45 Magnetic Jack LPJK4071AONL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: LPJK4071AONL

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description
Part Number: LPJK4071AONL Apllication: 1PORT 1000 BASE-T
Packaging: Tray Tab Direction: Up
Contact Finish: Gold File: PDF/3D/ISG/Stp/Step/Datasheet

Tab Up Single Port Four CT Separately Gigabit Rj45 Magnetic Jack LPJK4071AONL



LINK-PP Part Number LPJK4071AONL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option ORANGE&GREEN/YELLOW
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (mm) 13.50
Package Length (mm) 32.50
Package Width (mm) 16.60
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT




Tab Up Single Port Four CT Separately Gigabit Rj45 Magnetic Jack LPJK4071AONL




Tab Up Single Port Four CT Separately Gigabit Rj45 Magnetic Jack LPJK4071AONL
Ethernet Applications


Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Advantage

1840718-8 Low Profile TE Magjack
18 years production experience,
2600 staff,
100% test
Flexible delivery time

Famous Customer


Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......


EMS Components Sourcing

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly



FAQ



Q: What is the Minimum Order Quantity(MOQ)?

A: Normally, MOQ is 1000pcs, but special requirements can be accepted.



Q: How much do I need to pay for your OEM service?

A: No need to pay extra cost for our OEM service if order quantity over 1000 pcs. The OEM cost includes in the unit price.



Q: What is the lead time?(How long do you need me to prepare my goods?)

A: 2-4 days for sample orders, 10-15 days for mass production orders (based on different quantities, OEM , etc.)



Q: How will you deliver goods to me?

A: We ship by air and sea generally. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly.
