Home > products > RJ45 Multi Port Jack > 2x1 Port 1000M Stacked RJ45´s With Separated CT With LEDs LPJG17102AFNL

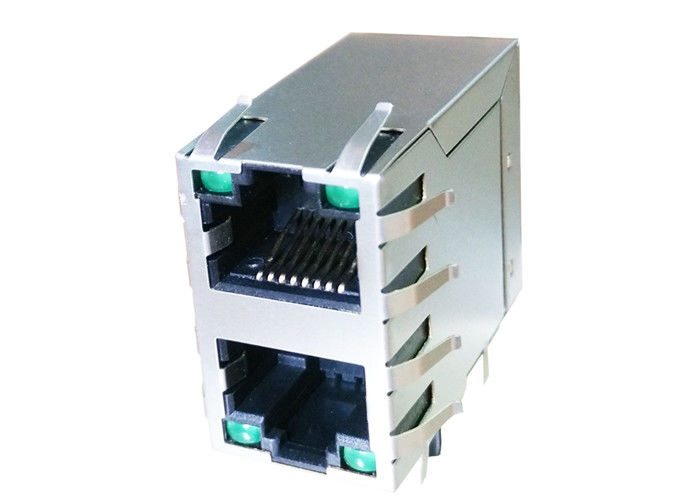

2x1 Port 1000M Stacked RJ45´s With Separated CT With LEDs LPJG17102AFNL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LPJG17102AFNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

modular jacks rj45

,

rj45 usb connector combo

Spec:
LPJG17102AFNL
Shielded:
Copper Alloy
Application:
HUB, PC Card, Switch, Router Etc
Mounting:
Side Entry (Right Angle)
Port:
2X1 Port
File:
PDF/3D/ISG/Stp/Step/Datasheet
Spec:
LPJG17102AFNL
Shielded:
Copper Alloy
Application:
HUB, PC Card, Switch, Router Etc
Mounting:
Side Entry (Right Angle)
Port:
2X1 Port
File:
PDF/3D/ISG/Stp/Step/Datasheet
2x1 Port 1000M Stacked RJ45´s With Separated CT With LEDs LPJG17102AFNL
2x1 Port 1000M Stacked RJ45´s With Separated CT With LEDs LPJG17102AFNL

Description:
Part Number

LPJG17102AFNL

Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Temperature 0 TO + 70℃
Diodes NO DIODES
LED Option GREEN / GREEN
Shielding Shielded, NO EMI Finger
Mounting Type Through Hole
Orientation 90° Angle (Right)
Latch TAB DOWN / UP
Number of Ports 2X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 26.90
Package Length (mm) 33.80
Package Width (mm) 16.80
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
2x1 Port 1000M Stacked RJ45´s With Separated CT With LEDs LPJG17102AFNL 0



Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years



Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Delivery Time:2-3 Weeks After Orders

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT



Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy



LINK-PP Corporate Policy

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services





Business partner



LINK-PP Is The Preferred Designer and Manufacturer of Intel, Intel MinnowBoard MAX Supported by LINK-PP Magnetic RJ45 PN#LPJG16314A4NL.

For any further information,Welcome to visit www.intel.com, you will find out our logo"LINK-PP" on MinnowBoard MAX .

2x1 Port 1000M Stacked RJ45´s With Separated CT With LEDs LPJG17102AFNL 1


F A Q

*Q:Can I get samples from you?

A:We are honored to offer you samples for quality check.



*Q:What parts are manufactured by you?

A:All of frame parts are manufactured by us.



*Q:What's the leading time? (How long do you need to prepare my goods?)

A:5 days for sample orders. 15 days for mass production orders (based on different quantities)



*Q:How long do I need to wait before my goods arrive?

A:3-5 days for international express. 5-7 days for air transportation, 15-30 days for sea transportation.



*Q:Can you put my brand name (logo) on these products?

A: Yes, or container order. Sticker order qty over 100pcs.



*Q:What payment methods do you accept?

A:T/T, L/C, Western Union, Money Gram, etc.



*Q:What certificates do you have?

A:Since Europe and America are our main markets, all of our products are with RoHS UL CE FCC certificate. For some models, the certificates are already available
