1840866-1 Gigabit Ethernet Stacked RJ45 With Integrated Magnetic LPJG17547CNL

China 1840866-1 Gigabit Ethernet Stacked RJ45 With Integrated Magnetic LPJG17547CNL supplier
1840866-1 Gigabit Ethernet Stacked RJ45 With Integrated Magnetic LPJG17547CNL supplier 1840866-1 Gigabit Ethernet Stacked RJ45 With Integrated Magnetic LPJG17547CNL supplier

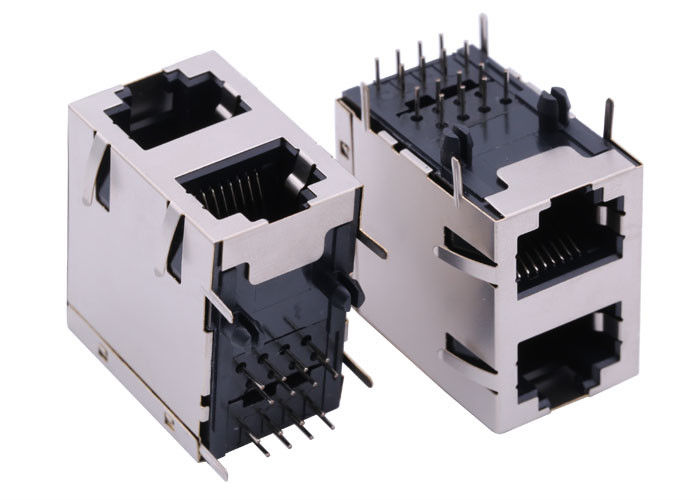

Large Image :  1840866-1 Gigabit Ethernet Stacked RJ45 With Integrated Magnetic LPJG17547CNL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 1840866-1

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: 0.5~10 USD/PCS
Packaging Details: package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: 3-30 work days
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: 1840866-1 Specification: LPJG17547CNL
Apllication: 1000Base-T 2x1 Port Rj45 Original Munafactuer: LINK-PP
Project Application: NETWORK INTERFACE CARD Sample: Free

1840866-1 Gigabit Ethernet Stacked RJ45 With Integrated Magnetic LPJG17547CNL



Competitor Cross Reference



2X1 Port RJ45 Magnetic Jack with 1000 Base-T Integrated Magnetics,Without LED,Tab Up/Tab Down,RoHS
LINK-PP Part Number LPJG17547CNL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option WITHOUT LEDS
Latch TAB UP/TAB DOWN
Number of Ports 2X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.677
Package Height (mm) 17.20
Package Length (Inches) 1.121
Package Length (mm) 28.49
Package Width (Inches) 0.996
Package Width (mm) 25.30
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT


Why Choose LINK-PP





Quality



World’s Leader supplier of Integrated RJ45 Connector and Discrete Magnetic Transformers.

Original materials suppliers are selected and appointed by Tyco Electronic ,and then put into production at the standard of Tyco Electronic .



  • Manufactured under strict controls.
  • ISO 9001:2008
  • UL Certification
  • Reach Cetitifaction
  • RoHS compliance
  • OEM Of TE(Tyco) For 9 Years
  • Active Environmental policy
  • Every module tested (not just batch tested)
Main Customers




Texas Instruments INTEL SAMSUNG FLUKE EKF HUAWEI IBM CISCO
FLEXTRONICS JABIL Foxconn CANON Arduino  -- --- ---





LINK-PP RJ45  Designed for BeagleBone Black of Texas Instruments



LINK-PP is the preferred supplier of Texas Instruments ,Samsung, Cisco ,Siemens and INTEL.

Welcome to visit the Texas Instruments's websit: http://www.ti.com/tool/beaglebk#0 You will look at our logo "LINK-PP”on  BeagleBone Board



                                LINK-PP ------------ Appointed Supplier And Supporter Of Embedded System for Ti
