HX5120NL Single Port 10/100/1000Base-T Gigabit Transformer Modules LP82453NL

China HX5120NL Single Port 10/100/1000Base-T Gigabit Transformer Modules LP82453NL supplier
HX5120NL Single Port 10/100/1000Base-T Gigabit Transformer Modules LP82453NL supplier HX5120NL Single Port 10/100/1000Base-T Gigabit Transformer Modules LP82453NL supplier

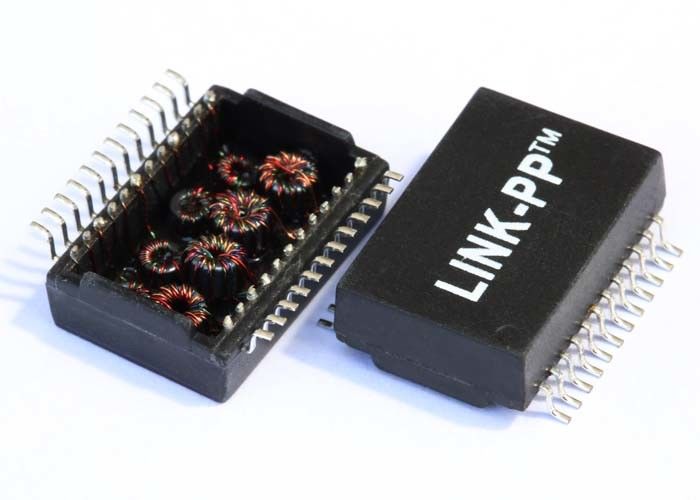

Large Image :  HX5120NL Single Port 10/100/1000Base-T Gigabit Transformer Modules LP82453NL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: HX5120NL

Payment & Shipping Terms:

Minimum Order Quantity: 500/1200
Price: supportive
Packaging Details: tape & reel / tube
Delivery Time: stock or 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 4.6kkpcs/month
Contact Now
Detailed Product Description
Item: HX5120NL Ethernet: 1000 Base-T Gigabit
Pin To Pin: LP82453NL Pins: 24
Samples: Available 1~3 PCS Temperature: 0 ℃ - 70 ℃

HX5120NL Single Port 10/100/1000Base-T Gigabit Transformer Modules LP82453NL



10/100/1000 Base -T Single Port Transformer Magnetic Modules,SMD,Rohs
LINK-PP Part Number: LP82453NL
Pulse Part Number: HX5120NL
Speed: 10/100/1000BASE-T
Number of Ports: SINGLE
Application - LAN: ETHERNET (NON PoE)
Package: SMD
Temperature: 0 TO 70
AutomDX: YES
Comment: SAME AS NL VERSION
Configuration RX: T,C,S
Configuration TX: T,C,S
Construction: OPEN FRAME
Cores Per Port: 8
Number of Ports: SINGLE
Package Height (Inches): 0.083
Package Height (mm): 2.10
Package Length (Inches): 0.650
Package Length (mm): 16.50
Package Width (Inches): 0.382
Package Width (mm): 9.70
Turns Ratio RX: 1CT:1CT
Turns Ratio TX: 1CT:1CT
