Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: XFATM9-CLxu1-2MS
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Specification: |
LPJ4012HENL |
Part No: |
XFATM9-CLxu1-2MS |
Ethernet: |
10/100Mbps |
Turn Ratio: |
1CT:1CT |
Mounting: |
Right Angle 90 Degree |
Samples: |
Available |
Specification: |
LPJ4012HENL |
Part No: |
XFATM9-CLxu1-2MS |
Ethernet: |
10/100Mbps |
Turn Ratio: |
1CT:1CT |
Mounting: |
Right Angle 90 Degree |
Samples: |
Available |

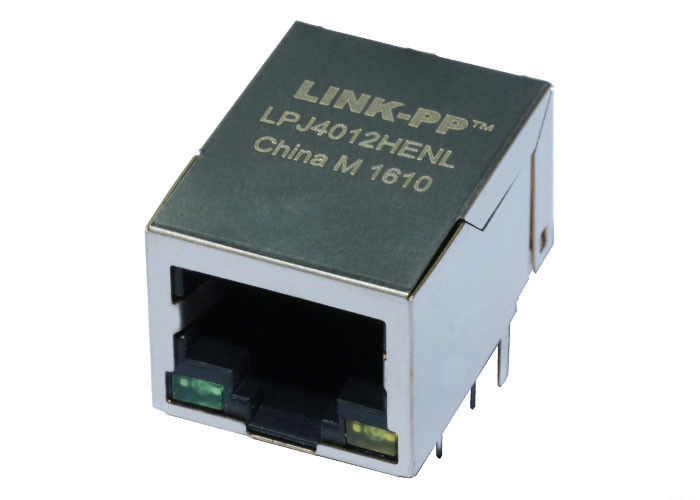

| 1x1 Port RJ45 Female Connector with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJ4012HENL |
| XFMRS Part Number | XFATM9-CLxu1-2MS |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | Green/Yellow LEDs |
| Latch | TAB Down |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.524 |
| Package Height (mm) | 13.30 |
| Package Length (Inches) | 0.837 |
| Package Length (mm) | 21.25 |
| Package Width (Inches) | 0.627 |
| Package Width (mm) | 15.93 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | without |
| Speed | 10/100 Base-T |
| Temperature | -40 TO + 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
