JXD1-0015NL Tab Up 1000Base-T Magnetic RJ45 Jack With LEDs LPJG16464ADNL

China JXD1-0015NL Tab Up 1000Base-T Magnetic RJ45 Jack With LEDs LPJG16464ADNL supplier
JXD1-0015NL Tab Up 1000Base-T Magnetic RJ45 Jack With LEDs LPJG16464ADNL supplier JXD1-0015NL Tab Up 1000Base-T Magnetic RJ45 Jack With LEDs LPJG16464ADNL supplier

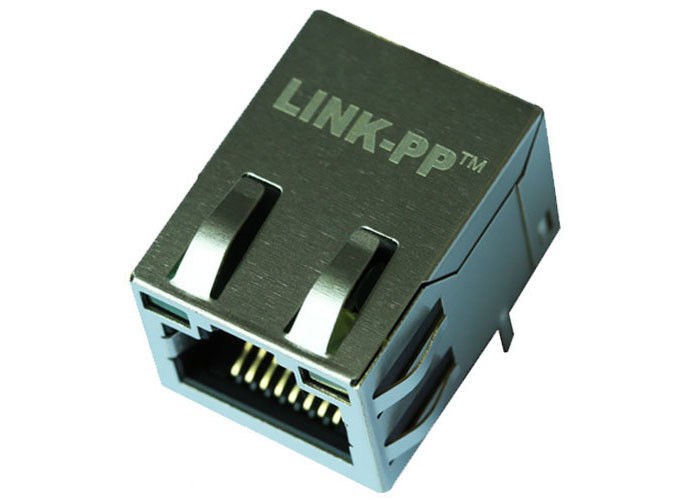

Large Image :  JXD1-0015NL Tab Up 1000Base-T Magnetic RJ45 Jack With LEDs LPJG16464ADNL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: JXD1-0015NL

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description
Part Number: LPJG16464ADNL Cross&Datasheet: JXD1-0015NL
Apllication: 1000 Base-T(x) Original Munafactuer: LINK-PP
Mail Customer: Ti, Intel, Cisco, Samsung, Fluke, Arduino ,Hp,Jabil,Flextronics Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

24-30011MN21-3 Tab Up 1000Base-T Magnetic RJ45 Jack With LEDs LPJG16543BFNL



LINK-PP Part Number LPJG16464ADNL
Part Number JXD1-0015NL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option YELLOW/GREEN
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (mm) 13.45
Package Length (mm) 21.25
Package Width (mm) 15.95
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Our main products

• 10/100/1000M Lan Transformer and Filter

• RJ45 Connector with 10/100/1000M Magnetic

• Optical Transceiver Modules



Packing and shipping

• Packing:Tray, reel, carton,vacuum packing for rj45 with transformer

• Shipping: DHL, FedEx, UPS, EMS, TNT



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years



Our service

• Free samples (excluding freight charge)

• 1 year guarantee period

• Online technical supported

• Factory evaluation anytime

• OEM and ODM orders are welcome

• Free Samples Are Available

• 90% Off Shipping Cost By DHL UPS DEDEX Or TNT

• Delivery Time:2-3 Weeks After Orders

• Provide New Design For Customer Requirements



Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy



LINK-PP Corporate Policy

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service



JXD1-0015NL Tab Up 1000Base-T Magnetic RJ45 Jack With LEDs LPJG16464ADNL
