5-2301995-3 Vertical RJ45 Jack 10/100 BASE-TX Magnetic LPJD4012B47NL

China 5-2301995-3 Vertical RJ45 Jack 10/100 BASE-TX Magnetic LPJD4012B47NL supplier
5-2301995-3 Vertical RJ45 Jack 10/100 BASE-TX Magnetic LPJD4012B47NL supplier 5-2301995-3 Vertical RJ45 Jack 10/100 BASE-TX Magnetic LPJD4012B47NL supplier

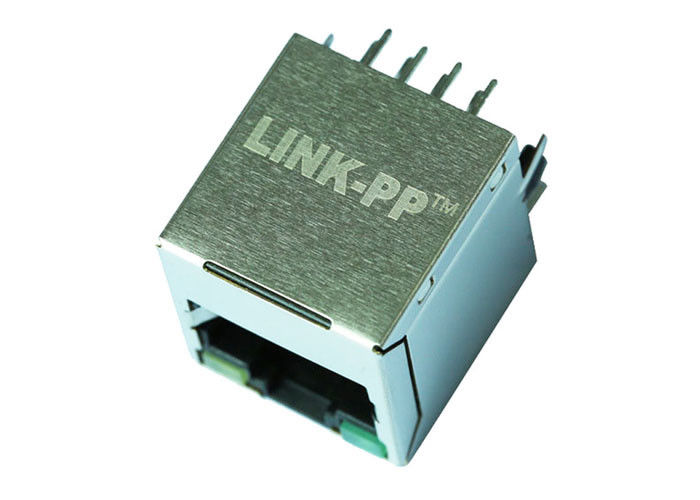

Large Image :  5-2301995-3 Vertical RJ45 Jack 10/100 BASE-TX Magnetic LPJD4012B47NL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: 5-2301995-3

Payment & Shipping Terms:

Minimum Order Quantity: 200/1200/1320
Price: Supportive
Packaging Details: Tray & Carton&Reel
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Design PN#: 5-2301995-3 Samples: Available Free
LEDs: Green / Green Interface: 10/100Mbps
Made In China: LPJD4012B47NL File: PDF/3D/ISG/Stp/Step/Datasheet

5-2301995-3 Vertical RJ45 Jack 10/100 BASE-TX Magnetic LPJD4012B47NL



Shielded Vertical RJ45 Connector with 10/100 Base-T Integrated Magnetics ,Green&Yellow/Green&Yellow LED,RoHS
LINK-PP Part NumberLPJD4012B47NL
Tyco Part Number5-2301995-3
Application-LanETHERNET(NoN PoE)
AutomDXYES
Bst CircuitYES
Configuration RXT,C
Configuration TXT,C
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Cores per Port4
DiodesNO DIODES
LED OptionGreen&Yellow/Green&Yellow
LatchTAB UP
Number of Ports1X1
PCBFR4
PCB Mount AngleVertical
PCB Retaining PostT POST
Package Height (Inches) 0.657
Package Height (mm) 16.70
Package Length (Inches) 0.665
Package Length (mm) 16.90
Package Width (Inches) 0.636
Package Width (mm) 16.15
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
SearchYES
Shield EMI TabsWITHOUT
Speed10/100 Base-T
Temperature-40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
