Model Number: HR973583A
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 60pcs/tray,or Reel Package
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3200K-PCS/Month
LINK-PP Part Number: |
LPJK0036A78NL |
Cross Part Number: |
HR973583A |
Speed: |
10/100/1000 BASE-T |
LED: |
Orange/Green LEDs |
Port: |
1X1 Single |
Cores: |
8 |
LINK-PP Part Number: |
LPJK0036A78NL |
Cross Part Number: |
HR973583A |
Speed: |
10/100/1000 BASE-T |
LED: |
Orange/Green LEDs |
Port: |
1X1 Single |
Cores: |
8 |

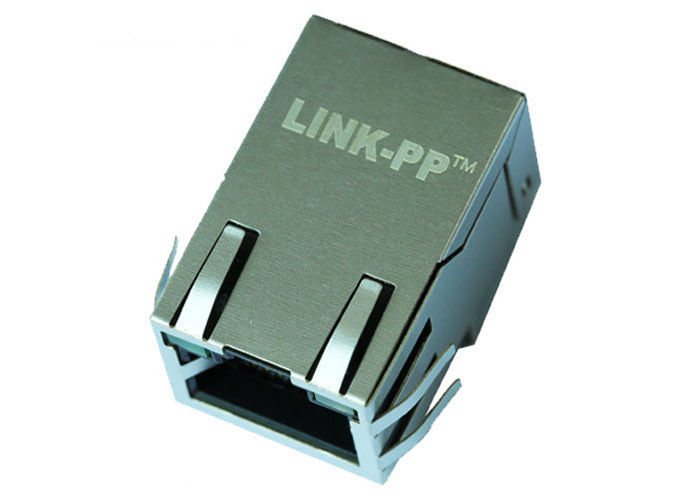

| Shielded 1x1 Port RJ45 Female Connector with 10/100/1000 Base-T Integrated Magnetics , Orange/Green LED,Tab UP,RoHS | |
| LINK-PP Part Number | LPJK0036A78NL |
| Hanrun Part Number | HR973583A |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | Orange/Green LEDs |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.531 |
| Package Height (mm) | 13.50 |
| Package Length (Inches) | 1.280 |
| Package Length (mm) | 32.50 |
| Package Width (Inches) | 0.654 |
| Package Width (mm) | 16.60 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | With |
| Speed | 10/100/1000 Base-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
1) Shielded = Yes
4. Body Related Features:
1) Port Configuration = Single
2) EMI Fingers -Top and Sides = With
3) Latch Orientation = Standard - Latch Up
4) PCB Tail Length
5. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole
6. Identification Marking:
1) Left LED Color (Position #1) = Yellow
2) Right LED Color (Position #2) = Green
7. Operating Temperature (°C ) = 0 - 70/-40 - +85
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
