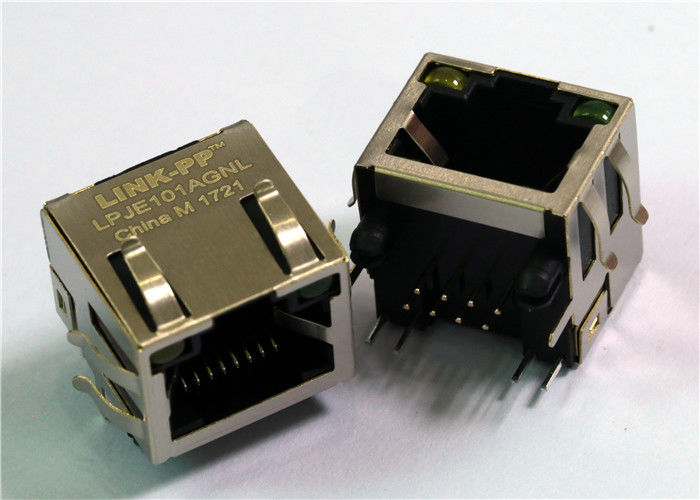

10221188B074 Rj45 Connectors With LED 8P8C Shielded Thru-Hole LPJE101AGNL

China 10221188B074 Rj45 Connectors With LED 8P8C Shielded Thru-Hole LPJE101AGNL supplier
10221188B074 Rj45 Connectors With LED 8P8C Shielded Thru-Hole LPJE101AGNL supplier 10221188B074 Rj45 Connectors With LED 8P8C Shielded Thru-Hole LPJE101AGNL supplier

Large Image :  10221188B074 Rj45 Connectors With LED 8P8C Shielded Thru-Hole LPJE101AGNL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: SGS,ISO,UL,Reach,RoHS
Model Number: 10221188B074

Payment & Shipping Terms:

Minimum Order Quantity: 500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 250000-320000/Month
Contact Now
Detailed Product Description
Specifications: 10221188B074 P.N: LPJE101AGNL
Port: 1x1 Family: Cat5/5e
LEDs: Green/Yellow Samples: Available

10221188B074 Rj45 Connectors With LED 8P8C Shielded Thru-Hole LPJE101AGNL

Shielded 1x1 Port 8P8C RJ45 Female Connector without Integrated Magnetics ,Yellow/Green LED,Tab UP,RoHS
LINK-PP Part Number LPJE101AGNL
FCI Part Number 10221188B074
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port Without Magnetics
Diodes With DIODES
LED Option Yellow/Green LEDs
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.516
Package Height (mm) 13.10
Package Length (Inches) 0.620
Package Length (mm) 15.75
Package Width (Inches) 0.640
Package Width (mm) 16.26
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed Without Magnetics
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

1.Insulation Resistance:500MΩMIN @ 500 VDC
2.Withstanding Voltage:AC1000V 50Hz or 60Hz 1min.
3.Durability:600 Mating Circles MIN.
4.Gold Plating:(Gold Flash;1.5;3;6;15;30;50)U" Inch
5.(1)Storage:  -40℃ to +85℃
  (2)Opertion: -40℃ to +85℃
  (3)Wave solder temperture:230℃ to 250℃,5~10 Sec.

10221188B074 Rj45 Connectors With LED 8P8C Shielded Thru-Hole LPJE101AGNL
