MHBJ-9001-CFGYNLF Magnetic RJ45 Jack with 10/100 Base-T Magnetics LPJ0013AHNL

China MHBJ-9001-CFGYNLF Magnetic RJ45 Jack with 10/100 Base-T Magnetics LPJ0013AHNL supplier
MHBJ-9001-CFGYNLF Magnetic RJ45 Jack with 10/100 Base-T Magnetics LPJ0013AHNL supplier MHBJ-9001-CFGYNLF Magnetic RJ45 Jack with 10/100 Base-T Magnetics LPJ0013AHNL supplier

Large Image :  MHBJ-9001-CFGYNLF Magnetic RJ45 Jack with 10/100 Base-T Magnetics LPJ0013AHNL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: MHBJ-9001-CFGYNLF

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description
Product Name: MHBJ-9001-CFGYNLF P-N: LPJ0013AHNL
TAB Direction: Down Mounting: THT PCB Mounting
LED Indicator: LED Colors Can Be Selected Samples: Free

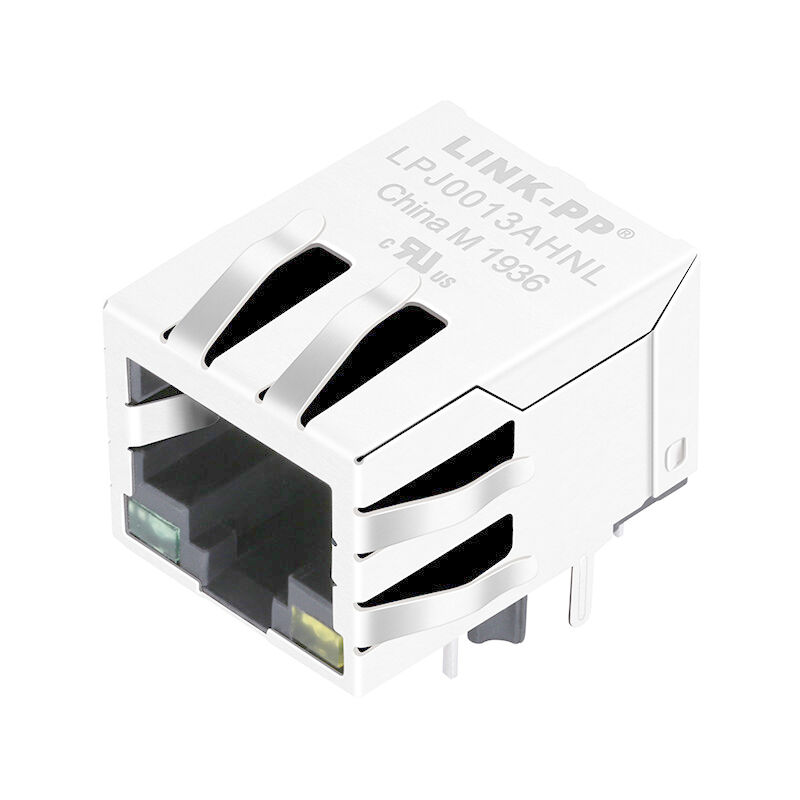

MHBJ-9001-CFGYNLF Magnetic RJ45 Jack with 10/100 Base-T Magnetics LPJ0013AHNL
  1. 1X1 Tab-down LPJ0013AHNL LINK-PP
  2. Through hole RJ45 modular jack
  3. 21.3mm length RJ45 Magjack
  4. Compatible to RJ-10149E
Single Port RJ45 Connector with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS
LINK-PP Part Number LPJ0013AHNL
Other Part Number MHBJ-9001-CFGYNLF
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch TAB DOWN
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.531
Package Height (mm) 13.50
Package Length (Inches) 0839
Package Length (mm) 21.30
Package Width (Inches) 0.630
Package Width (mm) 16.00
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
Description:

1X1  RJ45 Magjack with/without leds, meeting IEEE 802.3u
1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

2600 staff,
100% test
Flexible delivery time
