855427001 SMT 1x1 Port RJ45 Magjack Connector Without LED LPJE8802CNL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: ISO 9001,ISO 14001,UL,SGS,REACH168

Model Number: 855427001

Payment & Shipping Terms

Minimum Order Quantity: 220

Price: Supportive

Packaging Details: 110pcs/Reel,880pcs/carton.

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price
Highlight:

rj45 smt connector

,

surface mount rj45 connector

Specs:
855427001
P-N:
LPJE8802CNL
Application:
Ethernet Port
Mountings:
PCB SMD
LED:
None
Samples:
Free
Specs:
855427001
P-N:
LPJE8802CNL
Application:
Ethernet Port
Mountings:
PCB SMD
LED:
None
Samples:
Free

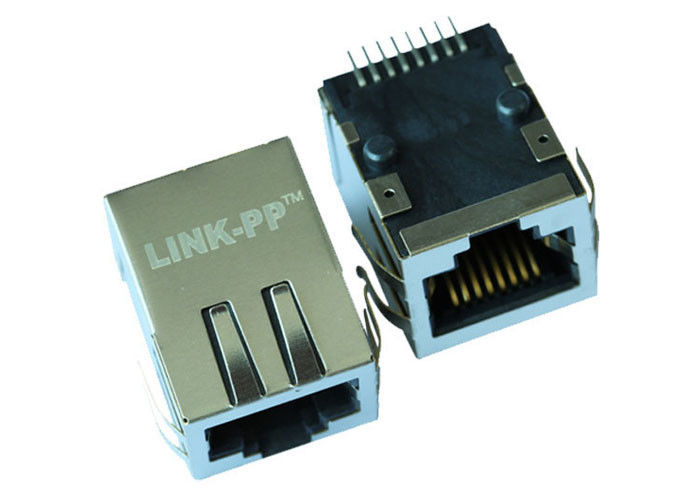

855427001 SMT 1x1 Port RJ45 Magjack Connector Without LED LPJE8802CNL
855427001 SMT 1x1 Port RJ45 Magjack Connector Without LED LPJE8802CNL

SMT 1x1 Port RJ45 Magjack Connector without Integrated Magnetics,Without LED,Tab Down,RoHS
LINK-PP Part Number LPJE8802CNL
Molex Part Number 855427001 / 0855437001
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port -
Diodes NO DIODES
LED Option Without LEDs
Latch TAB Down
Number of Ports 1X1
PCB FR4
PCB Mount Angle Surface Mount
PCB Retaining Post T POST
Package Height (Inches) 0.463
Package Height (mm) 11.75
Package Length (Inches) 0.734
Package Length (mm) 18.65
Package Width (Inches) 0.620
Package Width (mm) 15.74
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed Without Magnetics
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
