Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 212A-11CA0-RA14
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Specification: |
212A-11CA0-RA14 |
Part No: |
LPJG16405CNL |
Design Flexible: |
Yes |
Samples: |
Free Available |
Base: |
10/100/1000Mbps |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
212A-11CA0-RA14 |
Part No: |
LPJG16405CNL |
Design Flexible: |
Yes |
Samples: |
Free Available |
Base: |
10/100/1000Mbps |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |

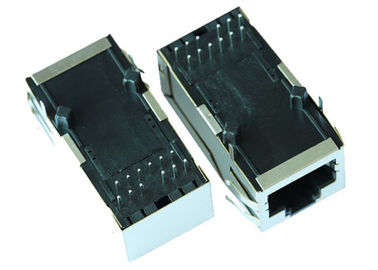

| Shielded 1x1 Port RJ45 Female Connector with 10/100/1000 Base-T Integrated Magnetics,Without LED,Tab UP,RoHS | |
| LINK-PP Part Number | LPJG16405CNL |
| Attend Part Number | 212A-11CA0-RA14 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 12 |
| Diodes | NO DIODES |
| LED Option | Without LEDs |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.530 |
| Package Height (mm) | 13.45 |
| Package Length (Inches) | 0.837 |
| Package Length (mm) | 21.25 |
| Package Width (Inches) | 0.628 |
| Package Width (mm) | 15.95 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | With |
| Speed | 10/100/1000 BASE-T |
| Temperature | -40 TO +85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
