2301994-6 Single Port Gigabit Rj45 Jack Shield Without LEDs LPJG4806CNL

China 2301994-6 Single Port Gigabit Rj45 Jack Shield Without LEDs LPJG4806CNL supplier
2301994-6 Single Port Gigabit Rj45 Jack Shield Without LEDs LPJG4806CNL supplier 2301994-6 Single Port Gigabit Rj45 Jack Shield Without LEDs LPJG4806CNL supplier

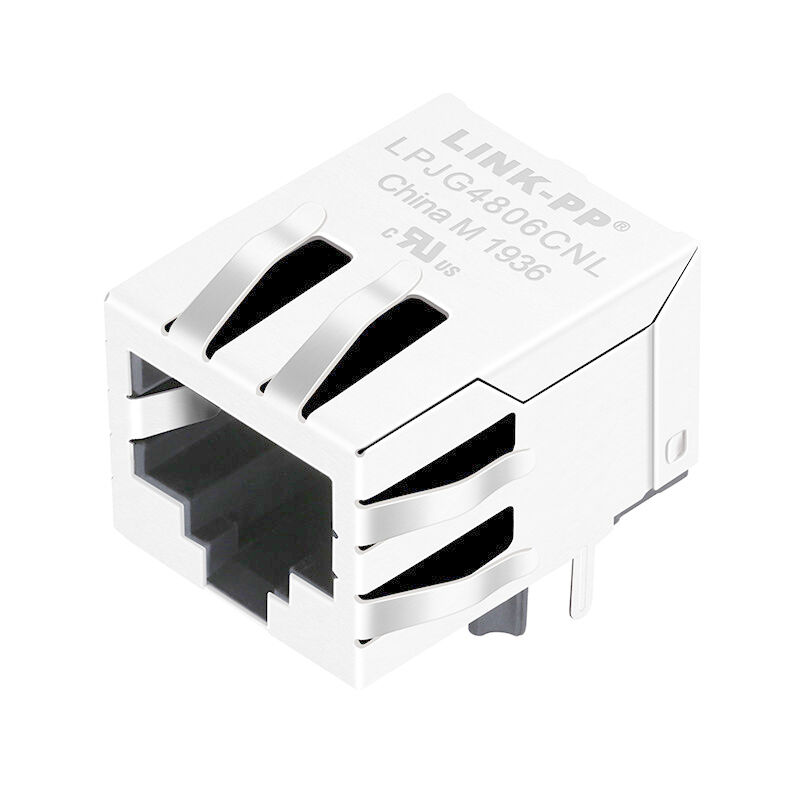

Large Image :  2301994-6 Single Port Gigabit Rj45 Jack Shield Without LEDs LPJG4806CNL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 2301994-6

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: 0.5~10 USD/PCS
Packaging Details: package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: 3-30 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: 2301994-6 Specification: LPJG4806CNL
Apllication: Gigabit Single Port Rj45 Original Munafactuer: LINK-PP
Project Application: NETWORK INTERFACE CARD File: PDF/3D/ISG/Stp/Step/Datasheet

2301994-6 Single Port Gigabit Rj45 Jack Shield Without LEDs LPJG4806CNL



Shielded 1x1 Port RJ45 Female Connector with 10/100/1000 Base-T Integrated Magnetics ,Without LED,Tab Down,RoHS
LINK-PP Part Number LPJG4806CNL
Tyco Part Number 2301994-6
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 12
Diodes Yes
LED Option without LEDs
Latch TAB Down
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.524
Package Height (mm) 13.30
Package Length (Inches) 0.837
Package Length (mm) 21.25
Package Width (Inches) 0.627
Package Width (mm) 15.93
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 10/100/1000 BASE-T
Temperature -40 TO +85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
