XRJS-S-01-8-8-4 Tab Up SMT RJ45 Connector Without Magnetics LPJES1013BHNL

China XRJS-S-01-8-8-4 Tab Up SMT RJ45 Connector Without Magnetics LPJES1013BHNL supplier
XRJS-S-01-8-8-4 Tab Up SMT RJ45 Connector Without Magnetics LPJES1013BHNL supplier XRJS-S-01-8-8-4 Tab Up SMT RJ45 Connector Without Magnetics LPJES1013BHNL supplier

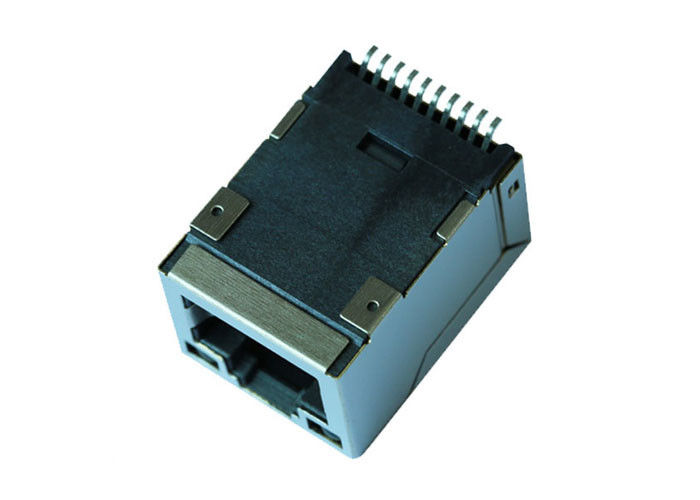

Large Image :  XRJS-S-01-8-8-4 Tab Up SMT RJ45 Connector Without Magnetics LPJES1013BHNL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: XRJS-S-01-8-8-4

Payment & Shipping Terms:

Minimum Order Quantity: 200/500 PCS
Price: Supportive
Packaging Details: Reel/Carton
Delivery Time: Stock or 5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: XRJS-S-01-8-8-4 Made In China: LPJES1013BHNL
Original Munafactuer: LINK-PP Termination: Solder
Samples: Available 2 Pcs File: PDF/3D/ISG/Stp/Step/Datasheet

XRJS-S-01-8-8-4 Tab Up SMT RJ45 Connector Without Magnetics LPJES1013BHNL



SMT 1x1 Port RJ45 Magjack Connector without Base-T Integrated Magnetics,Green/Yellow LED,Tab UP,RoHS
LINK-PP Part Number LPJES1013BHNL
X Multiple Part Number XRJS-S-01-8-8-4
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port -
Diodes NO DIODES
LED Option Green/Yellow
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle Surface Mount
PCB Retaining Post T POST
Package Height (Inches) 0.533
Package Height (mm) 13.55
Package Length (Inches) 0.620
Package Length (mm) 15.75
Package Width (Inches) 0.652
Package Width (mm) 16.55
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Shielded
Speed Without
Temperature -40 TO + 85
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT




Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Competitive Advantage
18 years production experience,
2600 staff,
100% test
Flexible delivery time



Main Customer
Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......

XRJS-S-01-8-8-4 Tab Up SMT RJ45 Connector Without Magnetics LPJES1013BHNL

XRJS-S-01-8-8-4 Tab Up SMT RJ45 Connector Without Magnetics LPJES1013BHNL

EMS ApplicationBuilt-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly



FAQ

1. How can i get a sample?

A:just check with our sales.

2.How to develop a new product base on an idea?

A: Tell us what you want, Then we will design it for free.

3.How about OED,ODM?

A: 15years experiences in OEM,ODM.

4.How to reduce your risk?

A: Check the sample before order.

5.How about the after-sale service?

A: Just tell us the problem after you receive the products.

Then we’ll help you deal with it together.
