HR871198A Vertical RJ45 Jack With 10/100 Base-T Magnetic LPJD6253BWNL

China HR871198A Vertical RJ45 Jack With 10/100 Base-T Magnetic LPJD6253BWNL supplier
HR871198A Vertical RJ45 Jack With 10/100 Base-T Magnetic LPJD6253BWNL supplier HR871198A Vertical RJ45 Jack With 10/100 Base-T Magnetic LPJD6253BWNL supplier

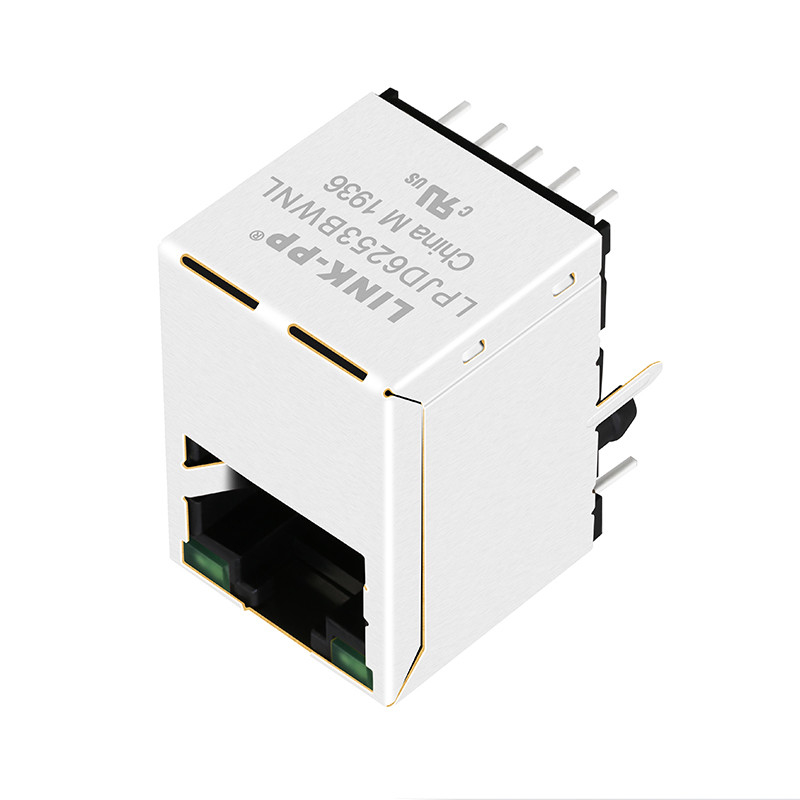

Large Image :  HR871198A Vertical RJ45 Jack With 10/100 Base-T Magnetic LPJD6253BWNL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: HR871198A

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: 0.5~10 USD/PCS
Packaging Details: Optional
Delivery Time: 3-30 work days
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: HR871198A PIN TO PIN: LPJD6253BWNL
Speed: 10/100 BASE-T Temperature: 0 TO - 70℃
File: PDF/3D/ISG/Stp/Step/Datasheet Samples: Free

HR871198A Vertical RJ45 Jack With 10/100 Base-T Magnetic LPJD6253BWNL



Shielded Vertical RJ45 Connector with 10/100 Base-T Integrated Magnetics ,Green/Green LED,RoHS
LINK-PP Part Number LPJD6253BWNL
Hanrun Part Number HR871198A
Application-Lan ETHERNET(PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port -
Diodes NO DIODES
LED Option Green/Green
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle Vertical
PCB Retaining Post T POST
Package Height (Inches) 0.660
Package Height (mm) 16.76
Package Length (Inches) 0.911
Package Length (mm) 23.15
Package Width (Inches) 0.634
Package Width (mm) 16.10
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed 10/100 Base-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

FEATURES

  • Manufactured with minimal numbers of solder connections to increase reliability over time
  • All MagJacks are 100% tested
  • Multiple solutions can be integrated into one connector series
  • RoHs compatible
  • Electrical performance
  • Shielded magnetics
  • Shorter PCB traces
  • Over 50% space savings on PCB per RJ port
