Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 11A502-5712-03
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Specification: |
11A502-5712-03 |
Cross Part: |
LPJG0801GENL |
Munafactuer: |
LINK-PP |
Ethernet: |
10/100/1000Base-T |
LEDs: |
Optional |
Samples: |
Available Free |
Specification: |
11A502-5712-03 |
Cross Part: |
LPJG0801GENL |
Munafactuer: |
LINK-PP |
Ethernet: |
10/100/1000Base-T |
LEDs: |
Optional |
Samples: |
Available Free |

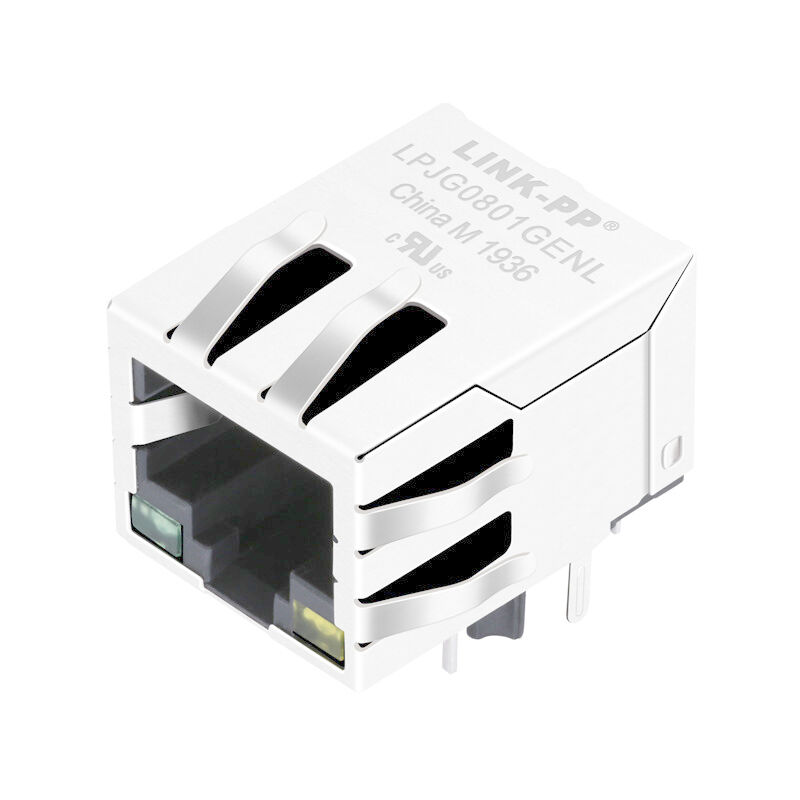

| Single Port RJ45 Connector with 1000 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJG0801GENL |
| Other Part Number | 11A502-5712-03 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | GREEN/YELLOW |
| Latch | TAB DOWN |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.528 |
| Package Height (mm) | 13.40 |
| Package Length (Inches) | 0.839 |
| Package Length (mm) | 21.30 |
| Package Width (Inches) | 0.626 |
| Package Width (mm) | 15.90 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 1000 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
| Electrical Specifications @25℃ 1.Turns Ratio(±2%): TX=1CT:1CT RX=1CT:1CT 2.OCL: 350uH Min @100KHz/0.1V With 8mA DC Bias 3.Return Loss(dB MIN): 1-30MHz:-18 30-60MHz:-16 60-80MHz:-12 80-100MHz:-10 4.Crosstalk(dB MIN): 1-30MHz:-40 30-60MHz:-35 60-100MHz:-30 5.Insertion Loss: 1-100MHz:-1.0dB MAX 6.CMR(dB MIN): 1-50MHz:-40 50-150MHz:-30 7.Hipot: 1500Vrms 8.Operating Temperature: 0℃～+70℃. |
|
|
|
